| Category | |
| Manufacturer Name | |
| Cable Group | |
| Center Contact Material | |
| Connector Style | |
| Connector Type | |
| Contact Termination | |
| Fastening Type | |
| Frequency | |
| Frequency - Max | |
| Housing Color | |
| Impedance | |
| Ingress Protection | |
| Mounting Feature | |
| Mounting Type | |
| Number of Ports | |
| Shield Termination | |
| Tape & Reel | |
| Termination Style |

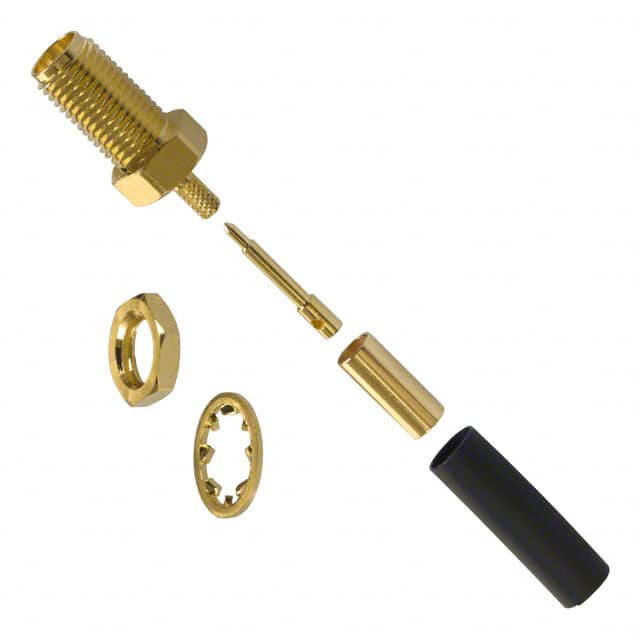

The Amphenol RF 132119RP is a reverse polarity SMA (RP-SMA) jack connector with a male pin center contact, designed for 50 Ohm impedance systems. This connector operates at frequencies up to 12.4 GHz, making it suitable for a wide range of RF and wireless applications.
The connector features a threaded fastening mechanism for secure mating and is designed for panel mounting with a bulkhead front side nut. The center contact is made of brass with a gold finish, and contact termination is achieved via soldering. The shield termination uses a crimp method.
This RP-SMA connector accommodates cable groups including RG-174, 188, 188A, 316, LMR-100, and M17/119-RG174. The housing has a gold color finish and is weatherproof for outdoor or harsh environment use.
50 Ohm.
12.4 GHz.
Panel mount with bulkhead front side nut.
Contact is solder, shield is crimp.
RG-174, 188, 188A, 316, LMR-100, M17/119-RG174.
Yes, it is rated as weatherproof.
