| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5 pcs
|
5 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Group | |
| Center Contact Material | |
| Connector Style | |
| Connector Type | |
| Contact Termination | |
| Fastening Type | |
| Frequency | |
| Housing Color | |
| Impedance | |
| Lead Style | |
| Mounting Type | |
| Number of Ports | |
| Shield Termination | |
| Tape & Reel |

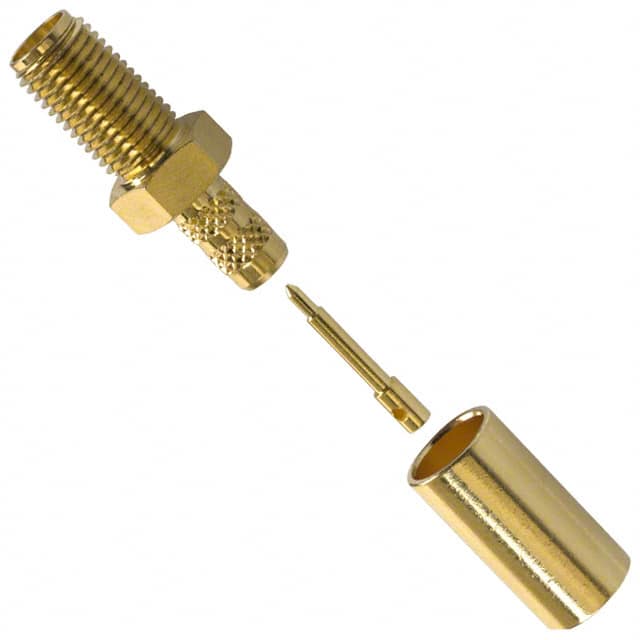

The Amphenol RF 132116RP is a reverse polarity SMA (RP-SMA) coaxial connector assembly. It features a jack, male pin interface with 50 Ohm impedance and supports frequencies up to 12.4 GHz. The connector uses threaded fastening and crimp termination for both center contact and shield, ensuring reliable RF connections.
The housing is gold plated and the center contact is made of brass. This connector is designed for free hanging (in-line) installation and is compatible with a variety of cable types including RG-58, RG-58A, RG-58B, RG-58C, RG-141, RG-303, LMR-195, Belden B7806A, and Belden 9907. The single port configuration makes it suitable for terminating cables in RF systems.
The connector style is RP-SMA and the connector type is Jack, Male Pin.
The impedance is 50 Ohm.
The frequency rating is 12.4 GHz.
The mounting type is Free Hanging (In-Line).
The fastening type is Threaded.
Both the center contact and shield are terminated using crimp.
It is compatible with RG-58, 58A, 58B, 58C, 141, 303, LMR-195, Belden B7806A, and 9907.
