| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8 pcs
|
8 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Group | |
| Center Contact Material | |
| Connector Style | |
| Connector Type | |
| Contact Termination | |
| Fastening Type | |
| Frequency | |
| Housing Color | |
| Impedance | |
| Lead Style | |
| Mounting Type | |
| Number of Ports | |
| Shield Termination | |
| Tape & Reel | |
| Termination Style |

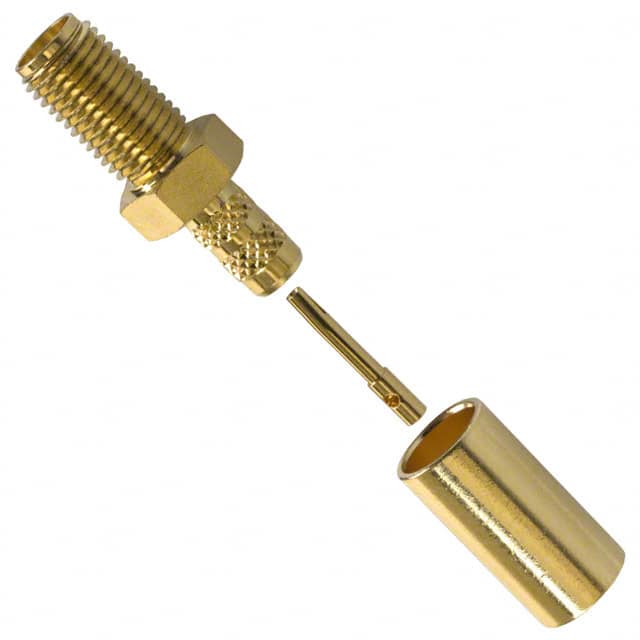

The Amphenol RF 132116 is an SMA jack connector with a female socket contact. It is designed for 50 Ohm impedance and operates up to 12.4 GHz. The connector uses a threaded fastening type for secure mating.
The center contact is made of beryllium copper, and the housing has a gold color. The contact termination is solder, while the shield termination is crimp. This connector is suitable for use with cable groups including RG-58, RG-141, RG-303, LMR-195, and Belden B7806A/9907.
The mounting type is free hanging (in-line), making it suitable for cable assembly applications. The connector is RoHS3 compliant and has an MSL of 1 (unlimited). Note: compliance data is unverified.
50 Ohms.
12.4 GHz.
Free hanging (in-line).
RG-58, 58A, 58B, 58C, 141, 303, LMR-195, Belden B7806A, 9907.
Solder.
Crimp.
Threaded.
