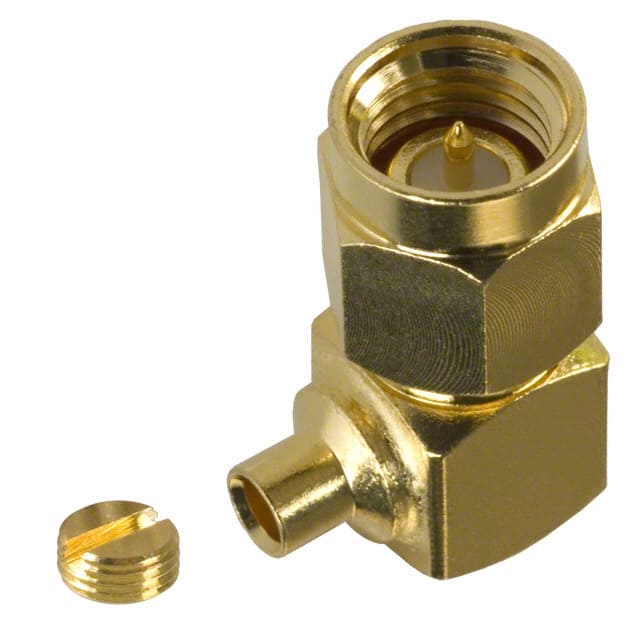

132111 The Amphenol RF 132111 is an SMA right angle plug connector with male pin, 50 Ohm impedance, supporting frequencies up to 18 GHz, designed for RG-405 semi-rigid cable.
Mfr Part #:

132111

Available from 1 distributors
Mfr Name: Amphenol RF
Amphenol RF
The Amphenol RF 132111 is an SMA right angle plug connector with male pin, 50 Ohm impedance, supporting frequencies up to 18 GHz, designed for RG-405 semi-rigid cable.
✓ Total Stock: 20 pcs
$ Price Range: $6.79 - $11.06

132111 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Husky International Electronic ✓
Non-Authorised Inventory information
20 pcs
On Request
20 pcs On Request 1 On Request On Request N/A On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

132111 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Approval Agency
Body Material
Cable Group
Center Contact Material
Connector Style
Connector Type
Contact Resistance
Contact Termination
Dielectric Withstanding Voltage
Fastening Type
Frequency
Housing Color
Impedance
Ingress Protection
Insertion Loss
Insulation Resistance
Insulator Material
Military Grade
Mounting Type
Number of Ports
Shield Termination
View Similar Products (0)

132111 Description

Short technical summary and product information.

The Amphenol RF 132111 is a semi-precision SMA coaxial connector designed for reliable broadband performance from DC to 18 GHz with 50 Ohm impedance. It features a right angle, free hanging (in-line) mounting style with threaded fastening for secure connections.



This plug connector is intended for use with RG-405 (.085" semi-rigid) cable. It offers low insertion loss (0.06 dB max at 6 GHz) and excellent RF leakage performance (-90 dB min at 2-3 GHz). Contact resistance is 2.0 milliohms for center and body, with 0.5 milliohms for braid to body. The connector is weatherproof, making it suitable for outdoor or harsh environments.



The connector body is made of brass with gold plating (economic type), center contact is brass, insulator is PTFE, and gasket is silicone rubber. It meets military specifications MIL-C-39012 and MIL-C-83517. Shield and contact termination are both solder type.

132111 Quick Information

Product Type: Coaxial Connector (RF) Assembly
Canonical Name: SMA Right Angle Plug, Male Pin, 50 Ohm, Solder, for RG-405 Cable
Subcategory: SMA Connector

132111 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 (Unlimited)
REACH Status: Non-Compliant

132111 Estimated Pricing

Qty Low High
1+ $11.06 $11.06
10+ $9.40 $9.40
25+ $8.81 $8.81
50+ $8.39 $8.39
100+ $7.99 $7.99
300+ $7.39 $7.39
500+ $7.13 $7.13
1,000+ $6.79 $6.79

Estimated market price range - modelled values for guidance only, not live distributor offers.

132111 Features

  • SMA right angle plug for RG-405 cable.
  • 50 Ohm impedance, DC-18 GHz frequency range.
  • Low insertion loss 0.06 dB at 6 GHz.
  • Weatherproof design for outdoor use.
  • Meets MIL-C-39012 and MIL-C-83517.

132111 Applications

  • RF signal connections in telecommunications equipment.
  • Semiconductor test and measurement systems.
  • Wireless infrastructure and antenna feeds.

132111 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the impedance of the 132111 connector?

50 Ohms.

What is the maximum frequency range?

DC to 18 GHz.

What is the mounting style of this connector?

Free hanging (in-line), right angle.

What cable group is this connector suitable for?

RG-405 (.085" semi-rigid).

What is the insertion loss of this connector?

0.06 dB max at 6 GHz.

Is this connector weatherproof?

Yes, it has a weatherproof ingress protection rating.

What military specifications does this connector meet?

MIL-C-39012 and MIL-C-83517.
