| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
159 pcs
|
159 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Termination | |
| Fastening Type | |
| Housing Color | |
| Impedance | |
| Mounting Type | |
| Number of Ports | |
| Shield Termination |

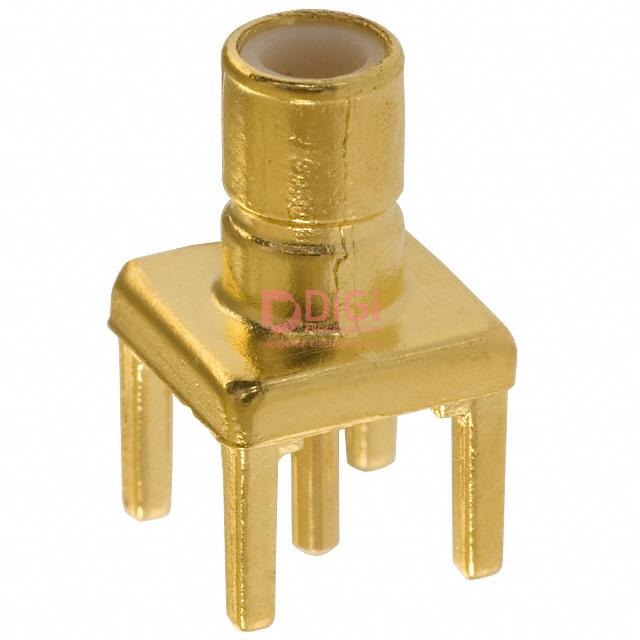

This SMB connector jack from Cinch Connectivity Solutions Johnson is designed for RF applications. It features a male pin with solder termination and a 50 Ohm impedance, suitable for frequencies up to 4 GHz.
The connector is designed for through-hole mounting and has a snap-on fastening type. The housing is gold in color, contributing to its durability and signal integrity.
This component is categorized under Coaxial Connectors (RF) and Coaxial Connector (RF) Assemblies. It is supplied in bulk packaging.
Key specifications include a maximum frequency of 4 GHz, 50 Ohm impedance, and through-hole mounting. The connector type is Jack, Male Pin.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.00 | $1.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
50 Ohms.
4 GHz.
SMB jack, male pin.
Through hole.
Solder for both contact and shield.
Snap-On.
1 port.
