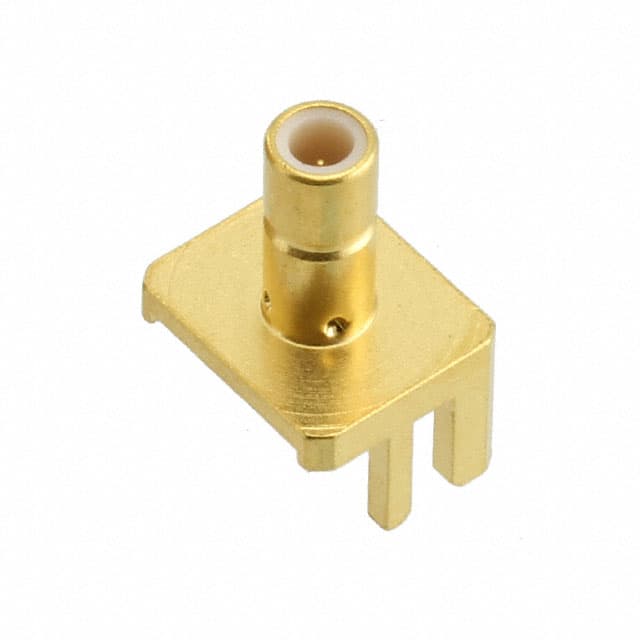

The 131-3701-811 is an SMB series jack connector from Cinch Connectivity Solutions. It features a male pin contact, 50 Ohm impedance, and operates from DC to 4 GHz. The connector is designed for edge board mounting with end launch style, and uses solder termination for both center and shield contacts. The body and center contact are made of brass with gold plating over nickel underplate. The working voltage is 335 Vrms at sea level, with dielectric withstanding voltage of 1000 Vrms. Contact resistance is 6.0 mΩ initial for center contact and 1.0 mΩ for outer contact. The connector uses a snap-on fastening type and has a single port. This connector is suitable for RF signal transmission in various applications including test and measurement, telecommunications, and aerospace.
50 Ohms.
0 to 4 GHz.
Board edge, end launch.
335 Vrms at sea level.
Solder termination for both center and shield contacts.
SMB.
Yes, RoHS3 compliant (unverified — please verify with manufacturer).
