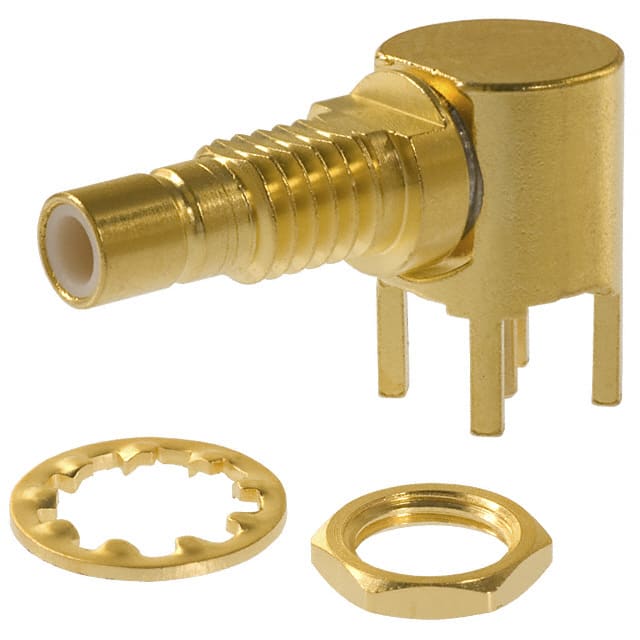

The 131-3701-341 is an SMB right angle bulkhead jack receptacle from Cinch Connectivity Solutions. It features a 50 Ohm impedance and operates over a frequency range of 0-4 GHz. The connector uses a snap-on fastening type and provides solder termination for both the center contact and shield. The center contact is made of brass with gold plating over a nickel underplate barrier layer, and the body is nickel plated with a gold housing color.
This connector is designed for panel mount, through hole, right angle installation with a bulkhead - front side nut mounting feature. It supports a working voltage of 335 Vrms at sea level and has a dielectric withstanding voltage of 1000 Vrms. The insulation resistance is 1000 MOhm minimum, with a center contact resistance of 6 mOhm maximum initial and outer contact resistance of 1 mOhm maximum initial for gold plated connectors. Insertion loss is 0.3 dB maximum at 1.5 GHz.
Typical applications include RF signal connections in test and measurement equipment, telecommunications infrastructure, and other high-frequency systems requiring a reliable 50 Ohm interface. The right angle orientation allows for space-saving PCB layouts in compact enclosures.
50 Ohms.
4 GHz.
Solder termination for both center contact and shield.
Panel mount, through hole, right angle with bulkhead - front side nut.
335 Vrms maximum at sea level.
0.3 dB maximum at 1.5 GHz.
