| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
550 pcs
|
550 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Center Contact Material | |
| Connector Style | |
| Connector Type | |
| Contact Resistance | |
| Contact Termination | |
| Dielectric Withstanding Voltage | |
| Fastening Type | |
| Frequency | |
| Frequency - Max | |
| Housing Color | |
| Impedance | |
| Insulation Resistance | |
| Mounting Type | |
| Number of Ports | |
| Shield Termination | |
| Termination Style | |
| Working Voltage |

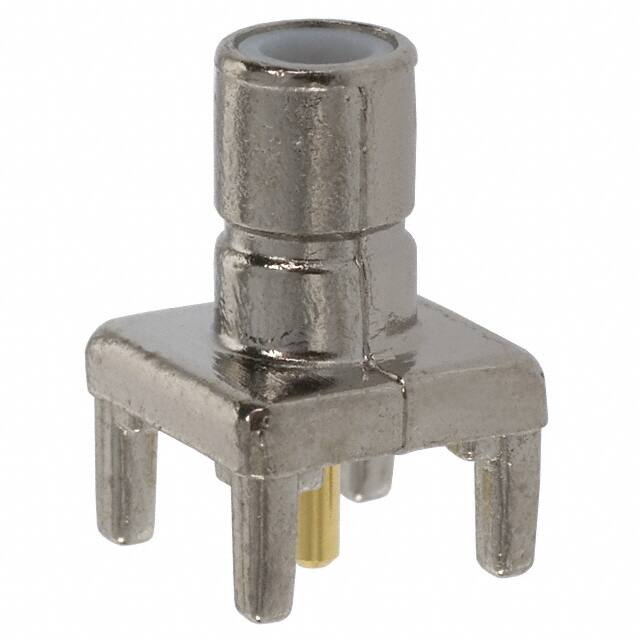

The Cinch 131-1701-216 is a 50 Ohm SMB straight jack receptacle featuring a male pin center contact. It is designed for through hole PCB mounting with solder terminations for both the center contact and shield. The connector uses a snap-on fastening type for quick and secure mating.
This connector supports frequencies up to 4 GHz and has a working voltage rating of 335 Vrms at sea level. The dielectric withstanding voltage is 1000 Vrms minimum at sea level, with a minimum insulation resistance of 1000 megohms. Initial center contact resistance is 6.0 milliohms.
The housing is silver in color and the center contact is made of brass. The connector is suitable for RF applications requiring a reliable 50 Ohm interface in a compact SMB form factor.
50 Ohms.
4 GHz.
Through hole.
335 Vrms maximum at sea level for uncabled receptacles.
Snap-on.
