| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
84 pcs
|
84 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Body Material | |
| Cable Group | |
| Center Contact Material | |
| Connector Style | |
| Connector Type | |
| Contact Plating | |
| Contact Termination | |
| Dielectric Withstanding Voltage | |
| Fastening Type | |
| Frequency | |
| Frequency - Max | |
| Housing Color | |
| Impedance | |
| Mounting Type | |
| Number of Ports | |
| Shield Termination | |
| Termination Style | |
| VSWR (Max) | |
| Working Voltage |

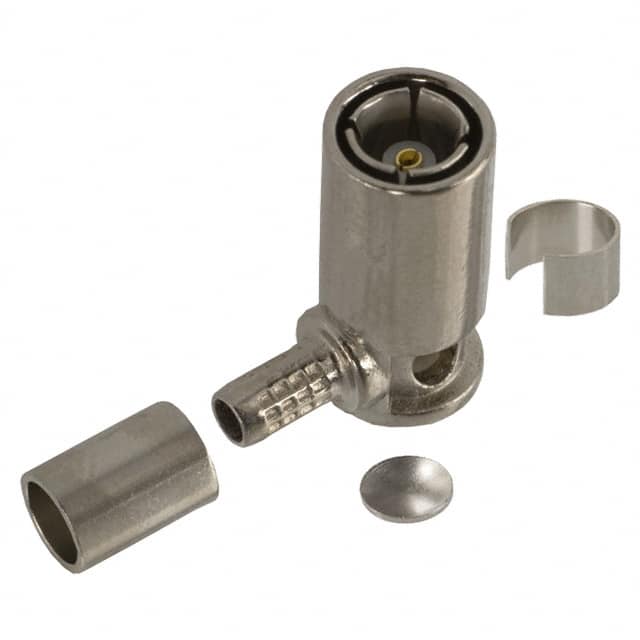

The Cinch 131-1404-116 is an SMB right angle plug connector designed for use with RG-179DS, RG-187DS, RG-188DS, and RG-316DS coaxial cables. It features a female socket center contact made of beryllium copper with gold over nickel plating, and a zinc die cast body with silver housing color. The connector offers a 50 ohm impedance and operates up to 4 GHz frequency range.
This plug uses a snap-on fastening type for quick and secure mating. The contact termination is solder, while the shield termination is crimp, providing reliable electrical and mechanical connections. The right angle design allows for space-saving installations in tight layouts.
Electrical ratings include a working voltage of 335 Vrms and dielectric withstanding voltage of 750 Vrms at sea level for RG-316/RG-58 cable. Maximum VSWR is 1.25 + 0.04f (f in GHz) for cabled configurations. The connector is RoHS3 compliant and has an MSL of 1 (unlimited).
50 ohms.
4 GHz.
SMB plug with female socket, right angle, snap-on fastening.
RG-179DS, RG-187DS, RG-188DS, RG-316DS.
335 Vrms at sea level for RG-316/RG-58 cable.
1.25 + 0.04f (f in GHz) for cabled configuration.
