| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
87 pcs
|
87 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| ATEX Conductor Cross Section | |
| AWG Range | |
| Blade Size | |
| Clamping Screw Size | |
| Color | |
| Connection Direction | |
| End Plate Required | |
| Explosion Tested | |
| Flammability Rating | |
| Flexible Conductor Range | |
| Gauge | |
| Height | |
| IECEx Conductor Cross Section | |
| Insulating Material | |
| Internal Cross-Connection | |
| Lead Style | |
| Length | |
| Mounting Type | |
| Number of Identical Terminals | |
| Number of Levels | |
| Number of Positions | |
| Open Sides | |
| Operating Temperature Range | |
| Pollution Severity | |
| Solid Conductor Range | |
| Standard Package Quantity | |
| Stranded Conductor Range | |
| Stripping Length | |
| TS 15 Offset | |
| Terminal | |
| Terminal Strips per Level | |
| Termination Style | |
| Tightening Torque | |
| Type | |
| Width | |
| Wire Gauge or Range |

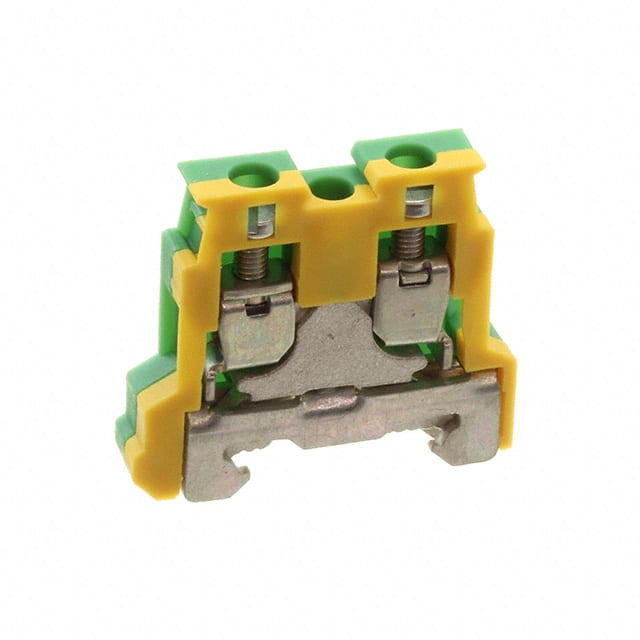

The Weidmüller 1303360000 (AKE 2.5) is a ground/earth terminal block from the SAK series. It has 2 positions in a single level with screw termination on the side. The clamping range is 0.13 to 4 mm², accepting solid conductors from 0.5 to 4 mm² and flexible conductors from 0.5 to 2.5 mm² (AWG 26-12). Stripping length is 7 mm, clamping screw M2.5, and tightening torque is 0.4-0.6 Nm. The insulating material is green/yellow polyamide with UL 94 V2 flammability rating. Operating temperature range is -50°C to +100°C. This terminal block is certified for ATEX/IECEx Ex e environments and is suitable for pollution severity 3. It mounts via screw onto TS 15 rail and requires an end plate. The open sides are on the right. Internal cross-connection is not provided. Standard package quantity is 100 pieces.
2 positions.
Solid: 0.5-4 mm² (26-12 AWG), flexible: 0.5-2.5 mm², clamping range 0.13-4 mm².
-50°C to +100°C.
Yes, it is ATEX/IECEx Ex e certified.
TS 15 rail.
0.4-0.6 Nm.
UL 94 V2.
