| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6,546 pcs
|
6546 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Finish | |
| Contact Material | |
| Features | |
| Insulation | |
| Length | |
| Mounting Type | |
| Stud | |
| Stud Size | |
| Terminal Type | |
| Termination | |
| Thickness | |
| Width | |
| Wire Gauge |

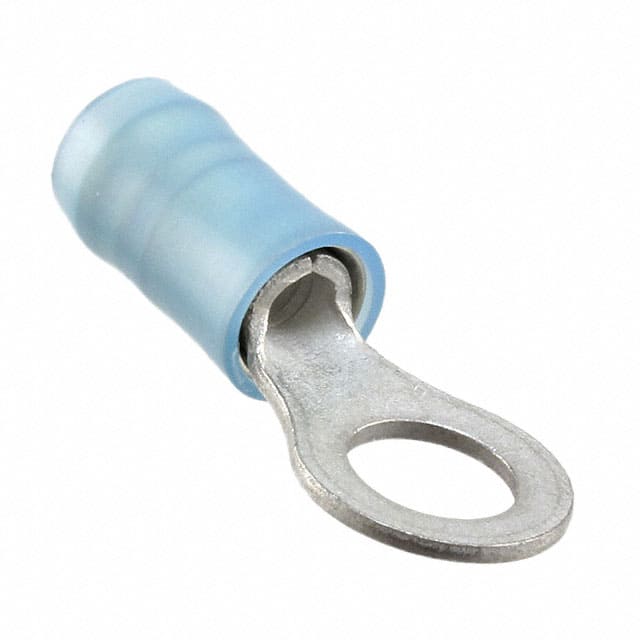

The TE Connectivity 130090 is a circular ring terminal designed for reliable wire termination in electrical and electronic assemblies. It accepts 14-16 AWG wire and terminates via a crimp connection, ensuring a secure and durable mechanical and electrical bond.
The terminal features a tin-plated copper contact for good conductivity and corrosion resistance. It is insulated and comes in a blue color, which is a standard industry color code for 14-16 AWG ring terminals. The stud size is M5, and the overall dimensions are 21.94mm in length, 8.71mm in width, and 0.79mm in thickness. A serrated termination feature enhances grip on the wire during crimping.
This component is suitable for a wide range of applications requiring a reliable ring terminal connection, including power distribution, control panels, and automotive wiring. The free-hanging (in-line) mounting style allows for easy integration into wire harnesses and cable assemblies.
The 130090 accepts 14-16 AWG wire.
The stud size is M5.
It uses a crimp termination.
Yes, it is insulated and the color is blue.
The contact is made of copper with a tin finish.
The length is 21.94mm (0.864 inches).
