| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
29,150 pcs
|
29150 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Finish | |
| Contact Material | |
| Features | |
| Industrial Grade | |
| Insulation | |
| Insulation Material | |
| Lead Style | |
| Length | |
| Metallic Sleeve Material | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| Operating Voltage | |
| Stud | |
| Stud Size | |
| Terminal Type | |
| Termination | |
| Thickness | |
| Width | |
| Wire Gauge |

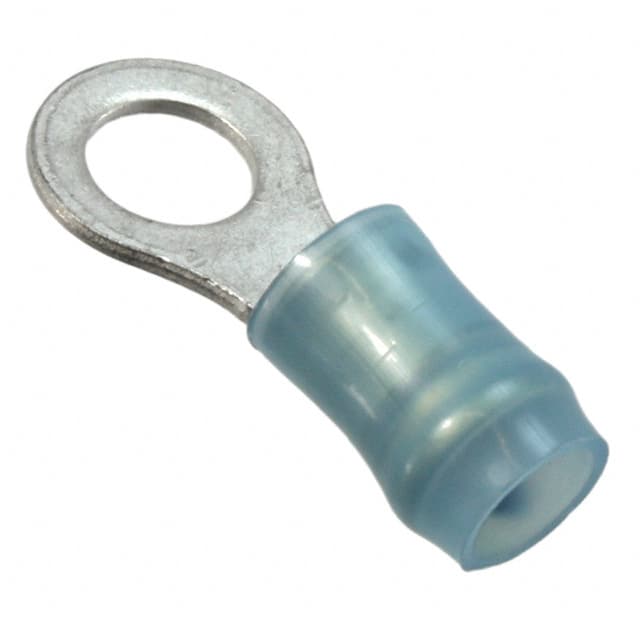

The TE Connectivity 130094 is a ring tongue terminal from the PIDG family, designed for reliable connections in demanding environments. It accommodates 14-16 AWG wire and features an M5 stud size. The terminal is constructed from high-conductivity copper per ASTM B-152 and is tin-plated for corrosion resistance. The insulation is nylon, rated UL 94V-2.
A copper metallic sleeve provides vibration resistance and supports the wire insulation, while inner serrations on the contact body ensure maximum electrical contact and tensile strength. The blue insulation is color-coded for wire size identification.
This terminal is rated for 300V operating voltage and 105°C operating temperature. It is crimp terminated and designed for free hanging (in-line) mounting. The part is suitable for control panels, power supplies, lighting, and transportation applications.
14-16 AWG.
M5.
Yes, it has a nylon insulation rated UL 94V-2.
300V and 105°C.
Copper per ASTM B-152, tin-plated per ASTM B-545.
Yes, inner serrations for maximum electrical contact.
