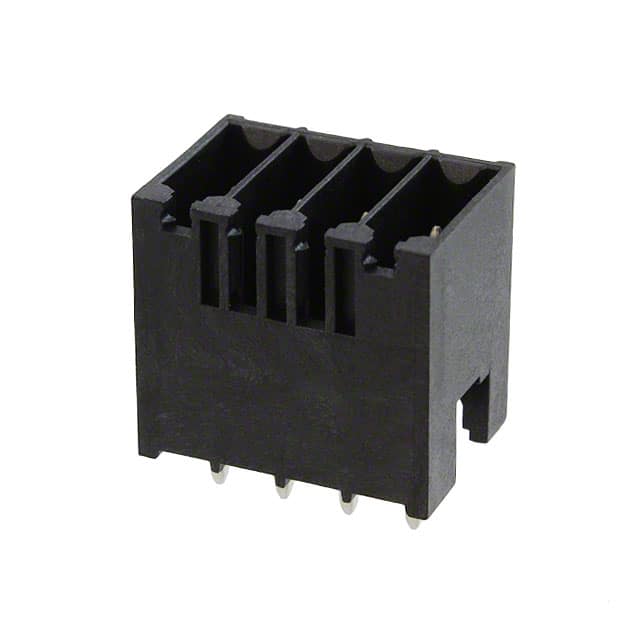

The Weidmüller 1290050000 is a shrouded (4 side) male pin header designed for terminal block interconnect applications. This part features 8 positions arranged in 2 levels with 4 positions per level at a 3.50mm pitch. The header is mounted vertically using through-hole solder termination, making it suitable for PCB integration.
Electrical ratings include a maximum current of 10 A and a rated voltage of 150 V (UL) / 200 V (IEC). The rated impulse voltage is 2.5 kV with an overvoltage category of III per IEC 60664-1. The contact mating finish is tin, and the contact base material is copper alloy. The insulation material is LCP GF with a flammability class of UL 94 V-0.
The header has an octagonal pin diameter of 1.0 mm and a solder eyelet diameter of 1.3 mm. The operating temperature range is -50°C to 120°C. This component is RoHS3 compliant and REACH unaffected.
The pitch is 3.50mm (0.138 inches).
It has 8 positions arranged in 2 levels with 4 positions per level.
The rated current is 10 A (9 A at 40°C ambient).
The voltage rating is 150 V (UL) and 200 V (IEC).
The mounting type is through hole with solder termination.
The operating temperature range is -50°C to 120°C.
The insulation material is LCP GF with a flammability class of UL 94 V-0.
