| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4 pcs
|
4 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Mating Finish | |
| Current | |
| Current Rating | |
| Features | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Operating Temperature | |
| Operating Temperature Range | |
| Pitch | |
| Plug Wire Entry | |
| Positions Per Level | |
| Termination Style | |
| Type | |
| Voltage | |
| Voltage Rating | |
| Wire Gauge Range | |
| Wire Gauge or Range |

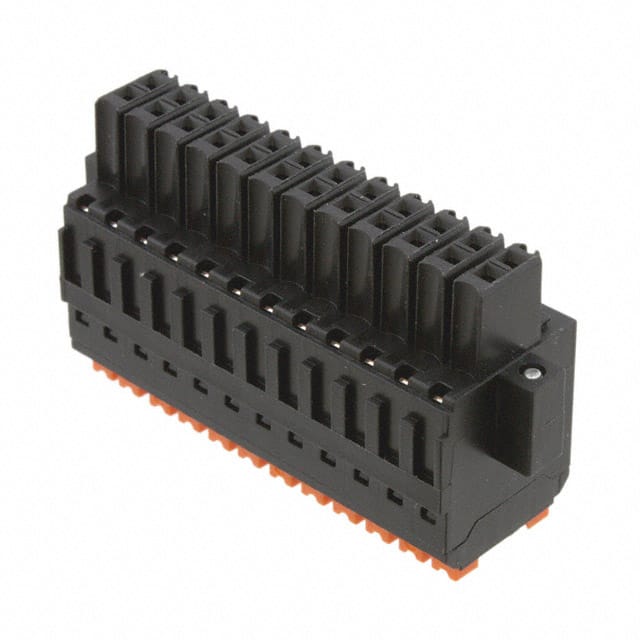

The Weidmüller 1277970000 is a 24-position terminal block plug with female sockets arranged in 2 levels of 12 positions each. It features a 3.50mm pitch and a free hanging (in-line) mounting style, making it suitable for wire-to-wire or wire-to-board connections where a pluggable interface is required.
The termination uses a screwless leg spring, push-in spring mechanism for quick and tool-free wire installation. The plug accepts wire gauges from 0.14 to 1.5mm² and is rated for 300V and 9.5A. The operating temperature range spans -50°C to 120°C.
The housing is black and includes a mating flange for secure connection to a matching header. Contact mating finish is tin. This plug is designed for use with compatible male headers in industrial control, automation, and power distribution applications.
The pitch is 3.50mm (0.138 inches).
It has 24 positions arranged in 2 levels of 12 positions each.
Rated voltage is 300V and rated current is 9.5A.
It uses screwless leg spring, push-in spring termination.
Free hanging (in-line) mounting.
It accepts wire gauges from 0.14 to 1.5mm².
-50°C to 120°C.
