| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4 pcs
|
4 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Color | |
| Contact Mating Finish | |
| Current | |
| Current Rating | |
| Features | |
| Halogen Free | |
| Industrial Grade | |
| Lead Spacing | |
| Lead Style | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Plug Wire Entry | |
| Positions Per Level | |
| SVHC Present | |
| Termination Style | |
| Type | |
| Voltage | |
| Voltage Rating | |
| Wire Gauge or Range |

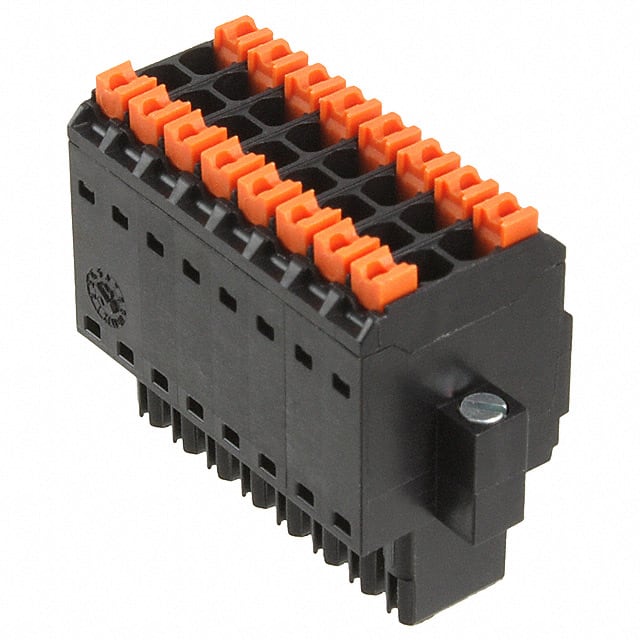

The Weidmüller 1277920000 is a 16-position terminal block plug with female sockets, designed for free hanging (in-line) mounting. It features a 3.5mm pitch and a screwless push-in spring termination style, allowing for quick and tool-less wire connection. The plug accepts wire sizes from 0.14 to 1.5 mm² and is rated for 9.5A at 300V. It operates over a temperature range of -50°C to 120°C. The housing is black and the contact mating finish is tin. A mating flange is included for secure connection. This plug is suitable for use in industrial control systems, building automation, and other applications requiring reliable wire-to-board connections.
16 positions arranged in 2 levels with 8 positions per level.
3.50mm.
9.5 A.
300 V.
Free Hanging (In-Line).
Screwless - Leg Spring, Push-In Spring.
0.14 to 1.5 mm².
