| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
27 pcs
|
27 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Mating Finish | |
| Current | |
| Features | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Plug Wire Entry | |
| Positions Per Level | |
| Termination Style | |
| Type | |
| Voltage | |
| Wire Gauge or Range |

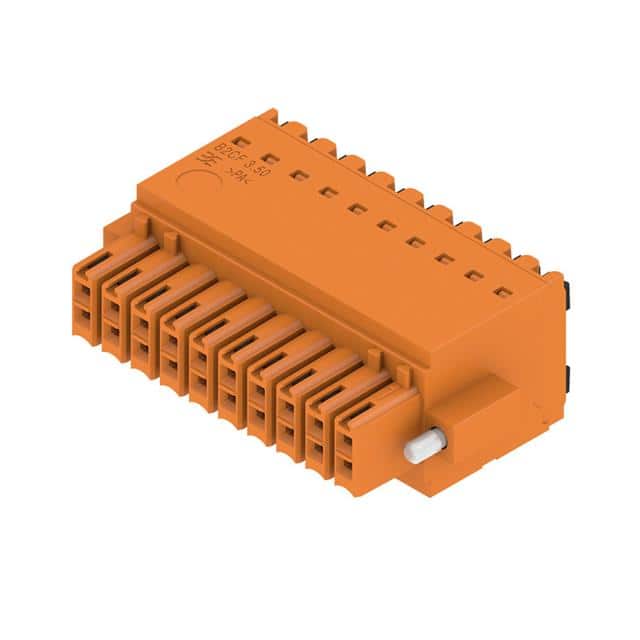

The Weidmüller 1277760000 is a terminal block plug with female sockets, designed for 20 positions in a 2-level configuration with a 3.50mm pitch. It features a screwless leg spring, push-in spring termination style for quick and tool-free wire connection. The plug accepts wire gauges from 0.14 to 1.5 mm² and is rated for 9.5A and 300V.
This plug is intended for free hanging (in-line) mounting with a 180° wire entry angle. It includes a mating flange for secure connection to the corresponding header. The operating temperature range spans from -50°C to 120°C. Contact mating surface is tin plated.
The orange housing color aids in identification. The plug is suitable for applications requiring a reliable and compact wire-to-board connection in demanding environments. Compliance data is unverified; RoHS, REACH, and MSL 1 status are assumed based on database records.
This Weidmüller plug has 20 positions arranged in 2 levels (10 positions per level).
The pitch is 3.50mm.
This plug is rated for 9.5A and 300V.
It uses a screwless leg spring, push-in spring termination.
It is designed for free hanging (in-line) mounting.
It accepts wire sizes from 0.14 to 1.5 mm².
The operating temperature range is -50°C to 120°C.
