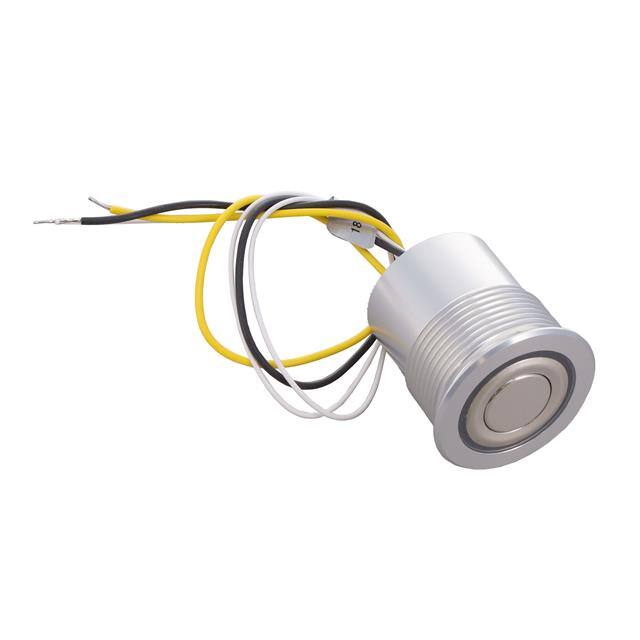

1241.6402 The Schurter Inc. 1241.6402 is an anti-vandal, illuminated pushbutton switch with a SPST-NO circuit. It is rated for 125mA at 48VDC and features a panel mount design with wire lead termination.
Mfr Part #:

1241.6402

Available from 1 distributors
Mfr Name: Schurter Inc.
Schurter Inc.
The Schurter Inc. 1241.6402 is an anti-vandal, illuminated pushbutton switch with a SPST-NO circuit. It is rated for 125mA at 48VDC and features a panel mount design with wire lead termination.
✓ Total Stock: 19 pcs
$ Price Range: $0.75

1241.6402 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
19 pcs
On Request
19 pcs On Request 1 On Request On Request 2026-02-25 06:16:38 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1241.6402 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Actuator Marking
Actuator Type
Automotive Grade
Circuit
Color
Current Rating (Amps)
Features
Illumination Type, Color
Illumination Voltage (Nominal)
Industrial Grade
Ingress Protection
Insulation Resistance
Medical Grade
Military Grade
Mounting Type
Operating Temperature
Panel Cutout Dimensions
Switch Function
Tape & Reel
Termination Style
Type
Voltage Rating
View Similar Products (0)

1241.6402 Description

Short technical summary and product information.

The Schurter Inc. 1241.6402 is an anti-vandal, illuminated pushbutton switch designed for reliable input. It features a SPST-NO circuit configuration and is rated for a maximum switching voltage of 48 VDC and a switching current of 125 mA.



This illuminated switch offers tactile feedback, ensuring a positive user experience. It has a panel mount, front-side mounting type and wire lead termination for easy integration. The ingress protection rating is IP65, making it dust-tight and water-resistant, suitable for demanding environments. The actuator is round, button, and flush, with a silver color.



With an operating temperature range of -25°C to 60°C, the 1241.6402 is built for durability. The initial contact resistance is less than 50 mOhm, and after 1 million cycles, it remains below 150 mOhm. The insulation resistance is greater than 10^8 Ohm. This switch is part of the MCS series, known for its robust construction and high-quality materials.

1241.6402 Quick Information

Product Type: Pushbutton Switch
Series: MCS
Canonical Name: Schurter Inc. 1241.6402 Anti-Vandal Illuminated Pushbutton Switch
Subcategory: Anti-Vandal, Illuminated

1241.6402 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1241.6402 Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

1241.6402 Features

  • Anti-vandal illuminated pushbutton switch.
  • SPST-NO circuit, 125mA at 48VDC.
  • IP65 ingress protection rating.
  • Tactile feedback for user input.
  • Panel mount, front, wire lead termination.

1241.6402 Applications

  • Ideal for control panels.
  • Suitable for industrial equipment.
  • Use in access control systems.
  • Applications requiring visual indication.

1241.6402 FAQs

9 frequently asked questions generated from this part’s specifications.
What is the maximum switching voltage for this pushbutton switch?

The maximum switching voltage is 48 VDC.

What is the maximum switching current for the Schurter 1241.6402?

The maximum switching current is 125 mA.

What is the rated breaking capacity of this switch?

The rated breaking capacity is 0.72 W.

What is the expected lifetime of this switch at its rated breaking capacity?

The expected lifetime is 1 million cycles.

What is the initial contact resistance of the 1241.6402 switch?

The initial contact resistance is less than 50 mOhm.

What is the insulation resistance of this pushbutton switch?

The insulation resistance is greater than 10^8 Ohm.

What is the operating temperature range for this Schurter switch?

The operating temperature range is -25°C to 60°C.

What is the ingress protection rating for the 1241.6402?

The ingress protection rating is IP65.

What is the illumination voltage for this illuminated pushbutton switch?

The nominal illumination voltage is 5 ~ 28 VDC.
