| Category | |
| Manufacturer Name | |
| Cable Group | |
| Center Contact Material | |
| Connector Style | |
| Connector Type | |
| Contact Termination | |
| Fastening Type | |
| Frequency | |
| Frequency - Max | |
| Housing Color | |
| Impedance | |
| Military Grade | |
| Mounting Type | |
| Number of Ports | |
| Shield Termination |

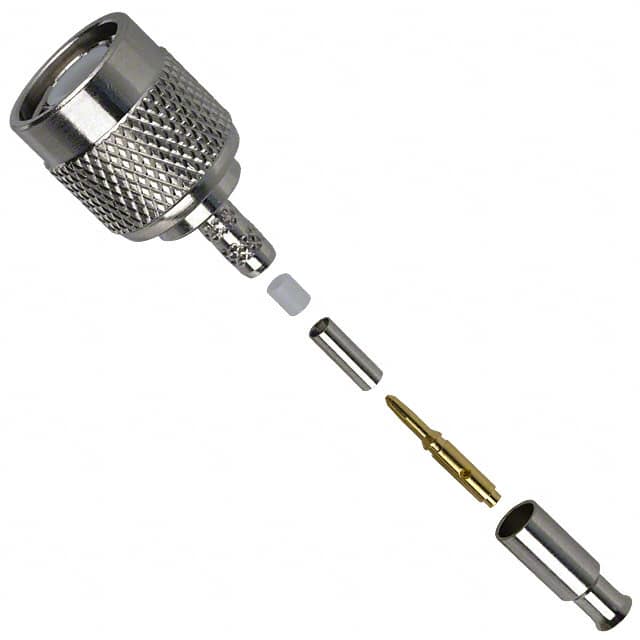

The Amphenol RF 122116 is a TNC plug connector designed for reliable RF interconnections. It features a male pin contact and a threaded coupling mechanism for secure connections, requiring only finger tightening. The connector is field-installable using a standard crimp tool for both the center contact and the outer shield.
This connector has a characteristic impedance of 50 Ohms and supports frequencies up to 11 GHz, making it suitable for a wide range of RF applications. It is designed for use with common small-diameter coaxial cables including RG-174, RG-188, RG-188A, RG-316, LMR-100, and M17/119-RG174.
The housing is silver-colored, and the center contact is made of brass. The connector is free-hanging (in-line) style, intended for cable termination rather than panel mounting. It is a single-port device.
It is a TNC plug connector with a male pin contact.
The impedance is 50 Ohms.
It operates up to 11 GHz.
Both the center contact and the shield are terminated using crimp.
It fits RG-174, RG-188, RG-188A, RG-316, LMR-100, and M17/119-RG174 cables.
It is free hanging (in-line) and does not require a panel cutout.
