| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
39,600 pcs
|
39600 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
3,600 pcs
|
3600 pcs | On Request | 1 | On Request | On Request | 1420 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Attachment Method | |
| Height | |
| Length | |
| Material | |
| Mounting Type | |
| Package / Case | |
| Plating | |
| Termination Style | |
| Type | |
| Width |

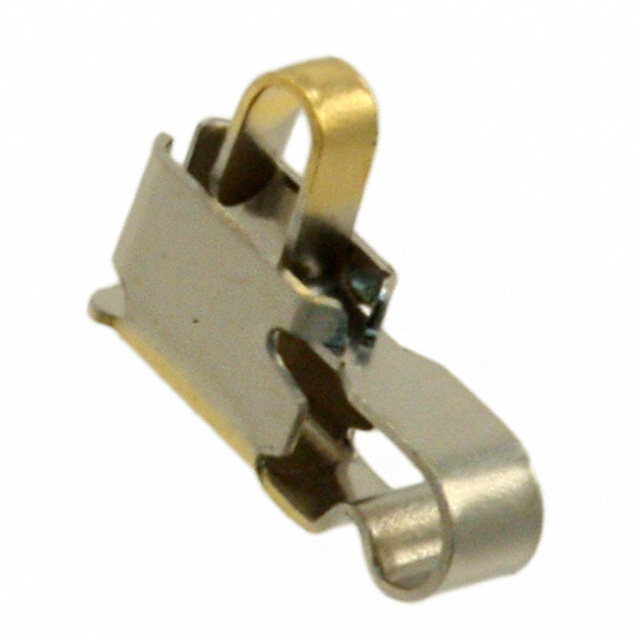

The ITT Cannon 120220-0204 is a Universal Contact designed for RFI and EMI shielding applications. This component features a Shield Finger, Pre-Loaded contact type, manufactured from Beryllium Copper with Gold plating.
With a height of 3.50mm and a width of 1.10mm, it is designed for surface mount attachment via solder termination. The contact offers a maximum current rating of 3A and a maximum contact resistance of 20 mOhm. It operates within a temperature range of -40°C to 85°C and supports up to 3000 mating cycles.
This part is packaged in Tape & Reel (TR) for efficient automated assembly. Its compact dimensions and robust construction make it suitable for various electronic enclosures and shielding needs.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating temperature range is -40°C to 85°C.
The 120220-0204 is a Shield Finger, Pre-Loaded contact.
The maximum current rating is 3A.
The 120220-0204 contact is designed for Surface Mount attachment.
The contact plating is Gold.
