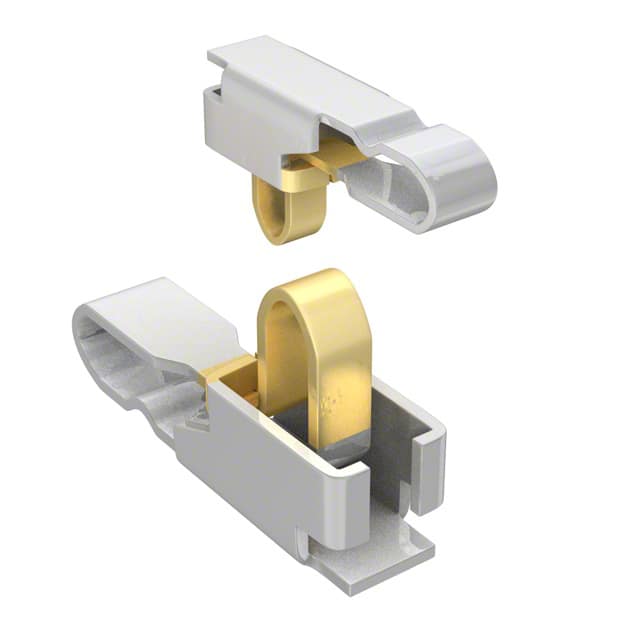

120220-0202 The ITT Cannon 120220-0202 is a Shield Finger, Pre-Loaded Universal Contact with a height of 1.80mm. It is designed for surface mounting and features solder termination.
Mfr Part #:

120220-0202

Available from 4 distributors
Mfr Name: ITT Cannon
ITT Cannon
The ITT Cannon 120220-0202 is a Shield Finger, Pre-Loaded Universal Contact with a height of 1.80mm. It is designed for surface mounting and features solder termination.
✓ Total Stock: 102,163 pcs
$ Price Range: $0.99

120220-0202 Available from 4 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Tomark Electronics Ltd ✓
Non-Authorised Inventory information
74,800 pcs
On Request
74800 pcs On Request 1 On Request On Request On Request On Request On Request
AA2DE ✓
Non-Authorised Inventory information
20,400 pcs
On Request
20400 pcs On Request 1 On Request On Request On Request On Request On Request
Innova Technologies ✓
Non-Authorised Inventory information
6,043 pcs
On Request
6043 pcs On Request 1 On Request On Request 2141 On Request On Request
Bristol Electronics ✓
Non-Authorised Inventory information
920 pcs
On Request
920 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

120220-0202 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Attachment Method
Contact Resistance
Height
Lead Spacing
Length
Material
Mounting Type
Plating
Storage Temperature
Tape & Reel
Tape Width
Termination Style
Type
Width
View Similar Products (0)

120220-0202 Description

Short technical summary and product information.

The ITT Cannon 120220-0202 is a Universal Contact designed for RFI and EMI shielding applications. This component features a Shield Finger, Pre-Loaded type and a height of 1.80mm.



Constructed from Beryllium Copper with Nickel plating, it offers a width of 0.90mm and a length of 3.35mm. The attachment method is solder, making it suitable for surface mount applications. The contact is rated for a maximum current of 3A and has a maximum contact resistance of 20mOhm.



Operating within a temperature range of -40°C to 85°C, this contact is packaged in tape and reel. The tape has a width of 12.00mm and a pitch of 4.00mm, with a maximum reel diameter of 330mm. It supports up to 3000 mating cycles.

120220-0202 Quick Information

Product Type: Contact
Series: Universal Contact
Canonical Name: ITT Cannon 120220-0202 Shield Finger, Pre-Loaded Contact
Subcategory: Shield Finger

120220-0202 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

120220-0202 Estimated Pricing

Qty Low High
1+ $0.99 $0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

120220-0202 Features

  • Shield Finger, Pre-Loaded contact type.
  • 1.80mm height, 0.90mm width, 3.35mm length.
  • Beryllium Copper with Nickel plating.
  • Surface mount, solder termination.
  • Rated for 3A maximum current.

120220-0202 Applications

  • Suitable for RF and wireless communication devices.
  • Used in PCB connections for electronic assemblies.
  • Ideal for pick and place SMT manufacturing processes.
  • Applicable in high-reliability electronic applications.
  • Suitable for surface mount electronic component connections.

120220-0202 FAQs

6 frequently asked questions generated from this part’s specifications.
What is the height of the ITT Cannon 120220-0202 contact?

The height of the 120220-0202 contact is 1.80mm.

What material is the ITT Cannon 120220-0202 contact made from?

The ITT Cannon 120220-0202 contact is made from Beryllium Copper.

What is the operating temperature range for the 120220-0202?

The operating temperature range for the 120220-0202 is -40°C to 85°C.

How is the ITT Cannon 120220-0202 contact mounted?

The ITT Cannon 120220-0202 contact is designed for surface mounting.

What is the RoHS status of the 120220-0202?

The 120220-0202 is RoHS3 Compliant.

What is the Moisture Sensitivity Level (MSL) for this part?

The Moisture Sensitivity Level (MSL) for this part is 1 Unlimited.
