| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
9 pcs
|
9 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Mating Finish | |
| Current | |
| Header Orientation | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Positions Per Level | |
| SVHC Present | |
| Storage Temperature | |
| Termination Style | |
| Type | |
| Voltage |

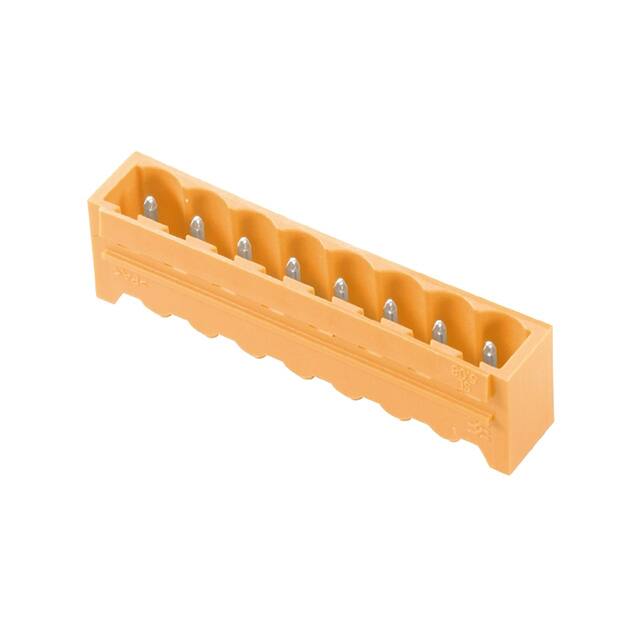

The Weidmüller 1146870000 is a vertical shrouded header designed for use in terminal block systems. It features 8 positions arranged in a single level with a pitch of 5.08mm, making it suitable for wire-to-board connections in industrial control and automation equipment.
This header is rated for 18.5A current and 300V voltage, with an operating temperature range of -50°C to 100°C. The through-hole mounting style and solder termination ensure reliable connections in PCB applications. The orange color and tin contact mating finish provide durability and corrosion resistance.
The shrouded design with four sides offers protection to the male pins and helps prevent misalignment during mating. This component is commonly used in conjunction with compatible plug connectors to form complete terminal block interfaces.
8 positions.
5.08mm (0.200 inches).
18.5 A.
300 V.
Through Hole.
-50°C to 100°C.
Tin.
