| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
491 pcs
|
491 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
489 pcs
|
489 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Features | |
| Housing Material | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Positions or Pins (Grid) | |
| Operating Temperature | |
| Pitch | |
| Termination | |
| Termination Style | |
| Type |

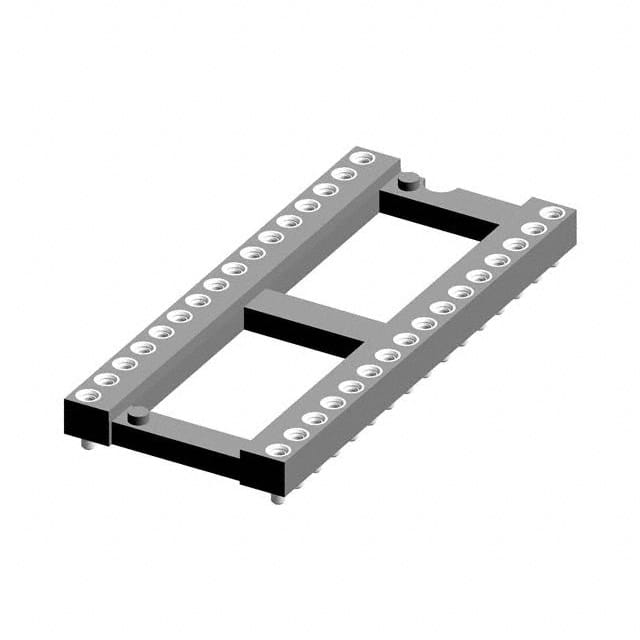

The Preci-Dip 114-87-632-41-117101 is a 32-position (2x16) DIP IC socket designed for surface mount applications. It features a standard 2.54mm (0.100") pitch and an open frame construction, allowing for efficient heat dissipation and easy cleaning after soldering.
The socket uses beryllium copper contacts with a tin flash finish, ensuring reliable electrical connections. The housing is made of glass-filled polycyclohexylenedimethylene terephthalate (PCT) or polyester, providing good mechanical strength and thermal stability. The operating temperature range is -55°C to 125°C.
This socket is suitable for prototyping and production where a low-profile, solderable DIP socket is required. The surface mount design is compatible with standard reflow soldering processes.
It has 32 positions arranged in a 2x16 grid.
The pitch is 2.54mm (0.100").
It is surface mount (SMD).
The operating temperature range is -55°C to 125°C.
The contact material is beryllium copper with a tin flash finish.
