| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
189 pcs
|
189 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
189 pcs
|
189 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Automotive Grade | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Features | |
| Housing Material | |
| Lead Spacing | |
| Lead Spacing (Pitch) | |
| Lead Style | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions or Pins (Grid) | |
| Operating Temperature | |
| Operating Temperature Range | |
| Pitch | |
| Row Spacing | |
| Tape & Reel | |
| Termination | |
| Termination Style | |
| Type |

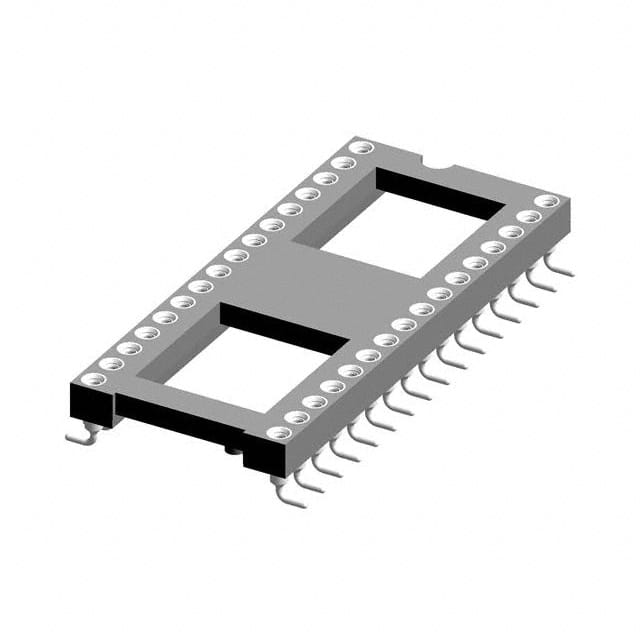

The Preci-Dip 110-87-632-41-105161 is a 32-position DIP socket designed for surface mount applications. It features a 2.54mm (0.100") pitch and 0.6" (15.24mm) row spacing, making it suitable for standard DIP packages.
The socket uses beryllium copper contacts with a tin flash finish, housed in a glass-filled PCT (Polycyclohexylenedimethylene Terephthalate) polyester insulator. The open-frame design allows for improved airflow and easier inspection of solder joints.
With an operating temperature range of -55°C to 125°C, this socket is suitable for a wide range of industrial and commercial environments. The surface mount termination style is compatible with standard SMT assembly processes.
It has 32 positions arranged in a 2x16 grid.
The pitch is 2.54mm (0.100").
The row spacing is 0.6" (15.24mm).
It is a surface mount socket with solder termination.
The operating temperature range is -55°C to 125°C.
The contacts are made of beryllium copper with a tin flash finish.
The housing is made of glass-filled PCT (Polycyclohexylenedimethylene Terephthalate) polyester.
