| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6 pcs
|
6 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Group | |
| Center Contact Material | |
| Connector Style | |
| Connector Type | |
| Contact Termination | |
| Fastening Type | |
| Frequency | |
| Housing Color | |
| Impedance | |
| Mounting Type | |
| Number of Ports | |
| Shield Termination |

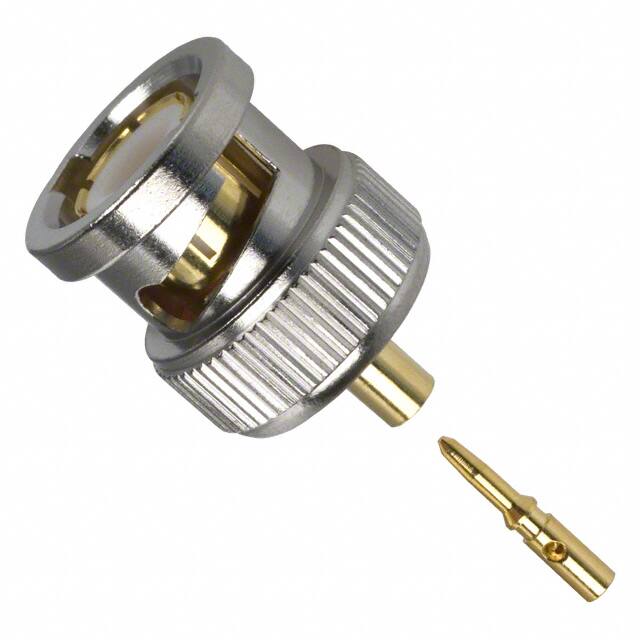

The Amphenol RF 112552 is a BNC male pin plug connector designed for use with RG-405 (.085"/.086" semi-rigid) coaxial cable. It offers a characteristic impedance of 50 Ohms and supports frequencies up to 4 GHz, making it suitable for RF signal transmission in test equipment, telecommunications, and instrumentation.
The connector features solder contact and shield termination for reliable electrical and mechanical connections. The bayonet lock fastening ensures quick and secure mating. The center contact is made of brass, and the housing is finished in gold for corrosion resistance and low contact resistance. Mounting is free-hanging (in-line), ideal for cable assemblies.
50 Ohm.
4 GHz.
RG-405 (.085", .086" semi-rigid) coaxial cable.
Free hanging (in-line).
Bayonet lock.
Brass.
Gold.
