| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Center Contact Material | |
| Connector Style | |
| Connector Type | |
| Contact Termination | |
| Contact Termination Style | |
| Fastening Type | |
| Features | |
| Frequency | |
| Frequency - Max | |
| Housing Color | |
| Impedance | |
| Mounting Feature | |
| Mounting Type | |
| Number of Ports | |
| Shield Termination | |
| Shield Termination Style |

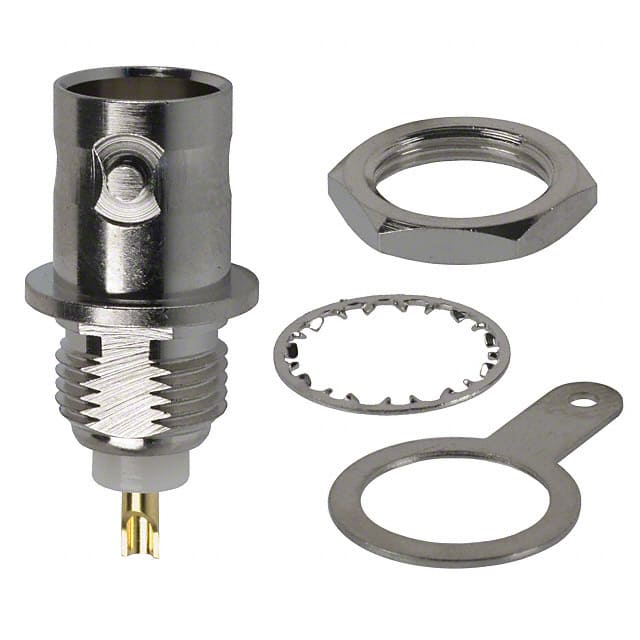

Part number 112424 from Amphenol RF is a BNC jack female socket coaxial connector. It features 50 Ohm impedance, supports frequencies up to 4 GHz, and is designed for panel mount with a bulkhead rear side nut.
The connector uses a bayonet lock fastening type, with a phosphor bronze center contact and solder cup contact termination. The shield termination is a solder tag. The housing is silver and includes extended insulation.
This connector is suitable for RF applications requiring reliable signal transmission in test and measurement, telecommunications, and other coaxial interconnect systems.
BNC jack, female socket.
50 Ohms.
4 GHz.
Panel mount with bulkhead rear side nut.
Solder cup.
Solder tag.
Bayonet lock.
