| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Group | |
| Center Contact Material | |
| Connector Style | |
| Connector Type | |
| Contact Termination | |
| Fastening Type | |
| Frequency | |
| Frequency - Max | |
| Housing Color | |
| Impedance | |
| Mounting Feature | |
| Mounting Type | |
| Number of Ports | |
| Shield Termination | |
| Termination Style |

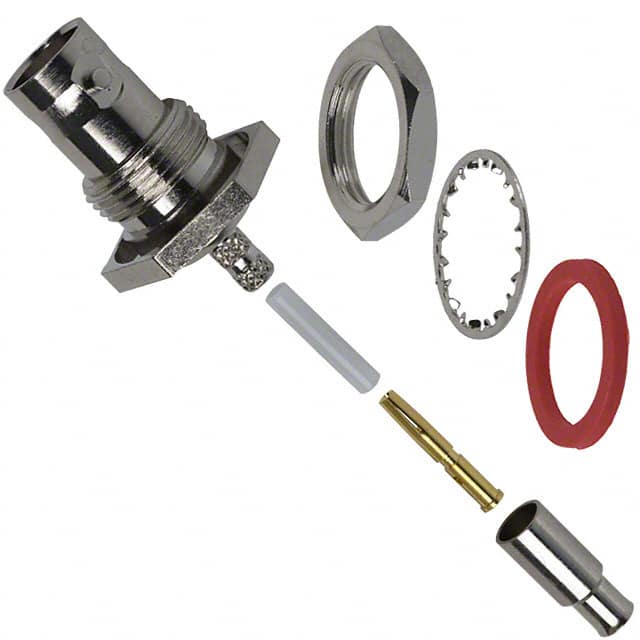

The Amphenol RF 112235 is a BNC Jack (Female Socket) connector designed for 75 Ohm impedance applications. It features a straight body profile and is intended for panel mount installation with a bulkhead front side nut locking mechanism.
This connector supports a maximum frequency of 4 GHz, making it suitable for high-frequency RF applications. The bayonet lock fastening type ensures secure connections, while the crimp termination for both contact and shield provides reliable electrical and mechanical bonds.
The center contact is made of phosphor bronze for durability and conductivity. The housing is finished in silver. This connector is compatible with a range of cable types including RG-179, 179A, 179B, 187, 187A, Belden 9221, and M17/94-RG179.
75 Ohm.
4 GHz.
BNC Jack, Female Socket.
Panel Mount, Bulkhead - Front Side Nut.
Crimp for both contact and shield.
RG-179, 179A, 179B, 187, 187A, Belden 9221, M17/94-RG179.
Bayonet Lock.
