| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
300 pcs
|
300 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Group | |
| Center Contact Material | |
| Connector Style | |
| Connector Type | |
| Contact Termination | |
| Fastening Type | |
| Frequency | |
| Frequency - Max | |
| Housing Color | |
| Impedance | |
| Mounting Type | |
| Number of Ports | |
| Shield Termination |

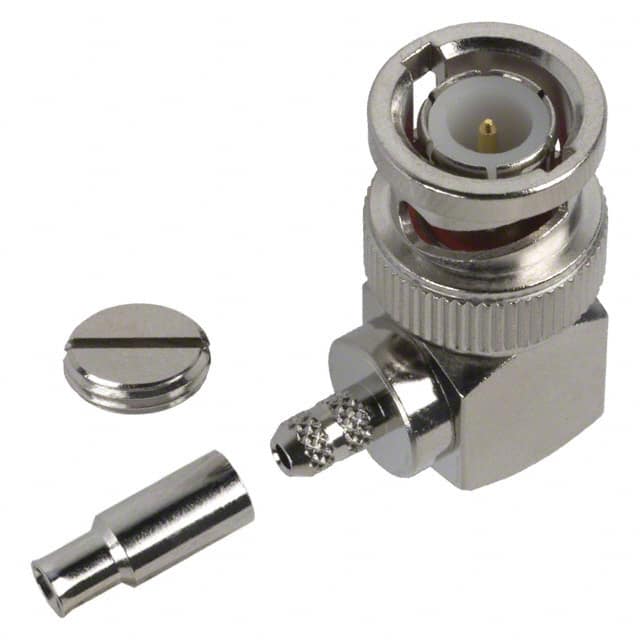

The Amphenol RF 112178 is a BNC plug connector designed for coaxial cable termination. It features a male pin center contact made of brass and a silver-plated housing. The connector offers a 50 Ohm impedance and supports frequencies up to 4 GHz.
The connector uses a bayonet lock fastening mechanism for quick and secure connections. The contact is terminated via solder, while the shield is terminated via crimp. It is designed for free hanging (in-line) right angle mounting.
This connector is compatible with cable groups RG-174, 188, 188A, 316, LMR-100, and M17/119-RG174. It is a single-port assembly suitable for various RF applications.
The impedance is 50 Ohm.
The maximum frequency is 4 GHz.
The center contact uses solder termination.
It is a free hanging (in-line), right angle mount.
Compatible with RG-174, 188, 188A, 316, LMR-100, and M17/119-RG174 cables.
