| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
59 pcs
|
59 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Length | |
| Actuator Type | |
| Circuit | |
| Contact Finish | |
| Contact Material | |
| Contact Plating | |
| Contact Resistance | |
| Contact Timing | |
| Current Rating (Amps) | |
| Features | |
| Insulation Resistance | |
| Mounting Style | |
| Mounting Type | |
| Operating Temperature | |
| Switch Function | |
| Termination Style | |
| Voltage Rating |

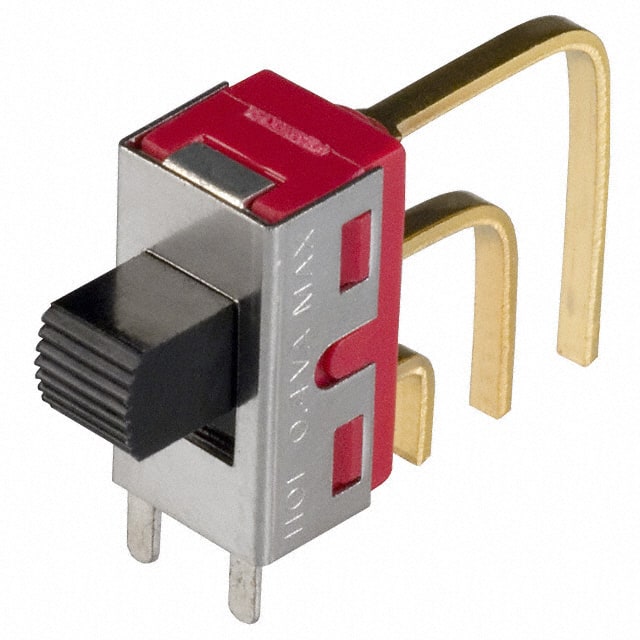

The C&K Components 1101M2S3AV2BE2 is a miniature slide switch from the 1000 Series. It features a Single Pole Double Throw (SPDT) circuit configuration with an On-On function.
This switch is rated for a maximum of 20V AC or DC and a contact rating of 0.4VA. The contact material is copper with a gold plating, offering low contact resistance. The operating temperature range is -30°C to 65°C.
The 1101M2S3AV2BE2 is designed for Through Hole mounting with a right-angle, vertical orientation. It has a PC Pin termination style and an epoxy sealed terminal design compatible with bottom-wash cleaning. The actuator is a standard type with a length of 4.72mm.
This RoHS 3 compliant switch is suitable for applications in test & measurement equipment, telecommunications, and computers & peripherals industries.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The switch has a nominal operating voltage of 20 V AC/DC.
-30°C to 65°C.
The contact resistance is less than 10 milliohms.
The dielectric strength is at least 1,000 Vrms.
It is packaged in a tray.
