| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
113 pcs
|
113 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| CSA File No | |
| Color | |
| Connector Type | |
| Contact Insertion Force | |
| Contact Material | |
| Contact Resistance | |
| Contact Retention to Housing | |
| Contact Termination | |
| Contact Type | |
| Current Rating (Max) | |
| Cycles | |
| Dielectric Withstanding Voltage | |
| Fastening Type | |
| Glow-Wire Capable | |
| Halogen Free | |
| Housing Material | |
| Industrial Grade | |
| Insertion Force to PCB | |
| Insulation Resistance | |
| Mating Force | |
| Medical Grade | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Packaging Type | |
| Pitch | |
| Plating | |
| Row Spacing | |
| SVHC Present | |
| Tape & Reel | |
| UL File No | |
| Unmating Force | |
| Voltage Rating (max) |

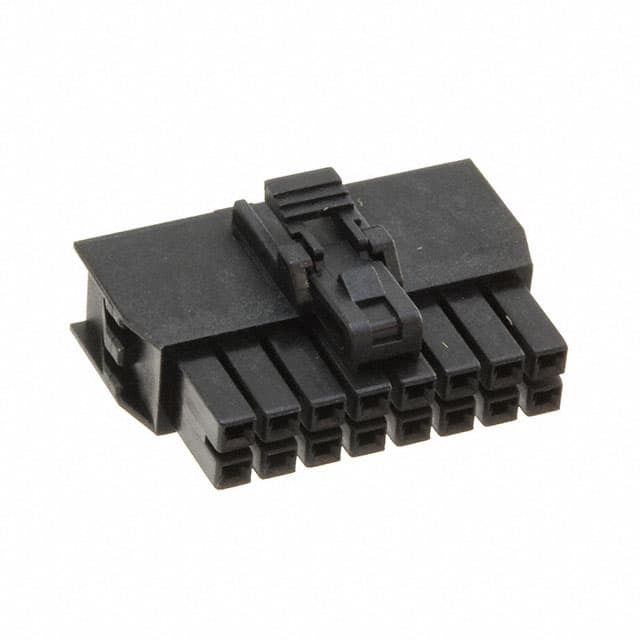

The Molex 1053081216 is a 16-position, dual-row rectangular connector housing from the Nano-Fit power connector family. It features a 2.50mm pitch and a receptacle configuration designed for crimp contacts. The housing is rated for 8.0A per contact and 250V, with a contact resistance change of 10 milliohms over life and dielectric withstanding voltage of 1500V. Insulation resistance is 1000 Megohms.
The housing uses a latch lock fastening mechanism for secure mating and unmating, with a mating and unmating force of 3N each. It is designed for free hanging (in-line) mounting and accepts crimp-terminated contacts. The housing is made of Nylon UL 94V-0 material and contacts are high-conductivity copper with tin or gold plating options. It supports up to 20 cycles with tin plating and 50 cycles with gold plating.
The part is glow wire capable, RoHS3 compliant, and halogen free. It holds UL file E29179 and CSA file LR19980. Typical applications include home appliances, servers, networking equipment, automotive interior lighting, and industrial machinery.
16 positions.
2.50 mm (0.098 inch).
8.0 amperes.
250 volts.
Free hanging (in-line).
3N typical.
Yes, RoHS3 compliant and halogen free.
