| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
140 pcs
|
140 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| CSA File No | |
| Color | |
| Connector Type | |
| Contact Resistance | |
| Contact Retention to Housing | |
| Contact Termination | |
| Contact Type | |
| Current - Max | |
| Dielectric Withstanding Voltage | |
| Fastening Type | |
| Glow-Wire Capable | |
| Halogen Free | |
| Housing Material | |
| Insulation Resistance | |
| Lead Spacing | |
| Mating Force | |
| Medical Grade | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| Tape & Reel | |
| Termination Style | |
| UL File No | |
| Unmating Force | |
| Voltage - Max |

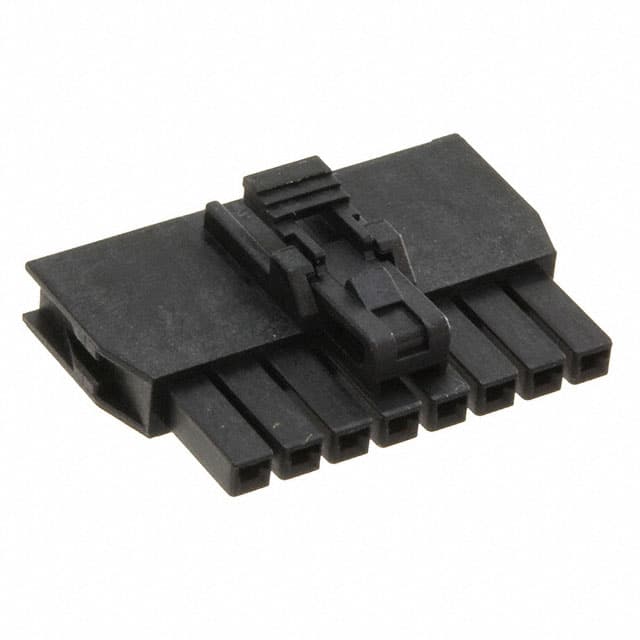

The Molex 1053071208 is an 8-position single-row receptacle housing from the Nano-Fit power connector series. It features a 2.50mm pitch and uses a latch lock fastening mechanism for secure mating. The housing is designed for free-hanging (in-line) mounting and accepts non-gendered crimp terminals (sold separately).
Electrical ratings include a maximum current of 8.0A and maximum voltage of 250V. Contact resistance is 10 milliohms, insulation resistance is 1000 Megohms, and dielectric withstanding voltage is 1500V. The housing is made of Nylon UL 94V-0 material, providing flammability protection. Mechanical characteristics include a mating and unmating force of 3N and a contact retention force of 27N.
The connector is RoHS3 compliant, REACH unaffected, MSL level 1, halogen-free, and glow wire capable. It is suitable for power and signal interconnection in a variety of applications including consumer appliances, telecom/networking equipment, automotive interior lighting, lighting fixtures, and industrial equipment.
8 positions.
2.50mm (0.098").
8.0A.
250V.
Free hanging (in-line).
Crimp.
Yes, RoHS3 compliant.
