| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| CSA File No | |
| Color | |
| Connector Type | |
| Contact Insertion Force | |
| Contact Material | |
| Contact Resistance | |
| Contact Retention to Housing | |
| Contact Termination | |
| Contact Type | |
| Current - Max | |
| Cycles (Gold) | |
| Cycles (Tin) | |
| Dielectric Withstanding Voltage | |
| Fastening Type | |
| Glow-Wire Capable | |
| Halogen Free | |
| Housing Material | |
| Insertion Force to PCB | |
| Insulation Resistance | |
| Mating Force | |
| Medical Grade | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Packaging Type | |
| Pitch | |
| Plating | |
| SVHC Present | |
| Tape & Reel | |
| UL File No | |
| Unmating Force | |
| Voltage - Max |

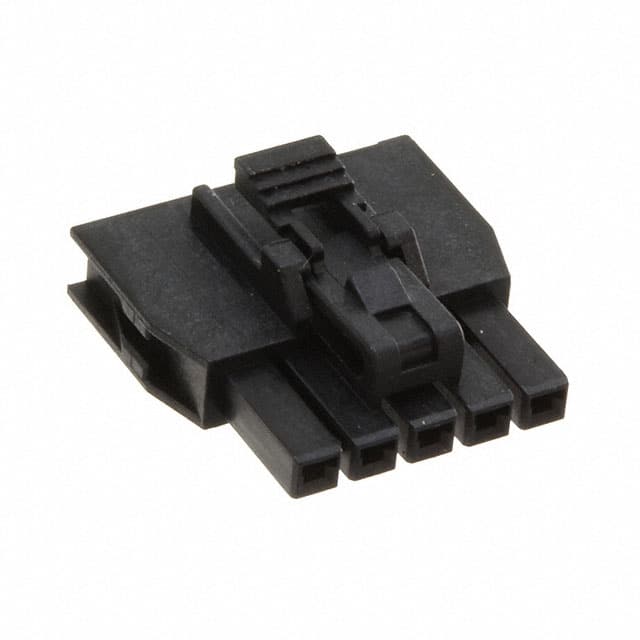

The Molex 1053071205 is a 5-position receptacle housing from the Nano-Fit power connector series. It features a 2.50mm pitch, single-row configuration, and latch lock fastening for secure mating. The housing accepts crimp terminals and supports free hanging (in-line) mounting. Electrical ratings are 8.0A maximum current and 250V maximum voltage, with a dielectric withstanding voltage of 1500V and insulation resistance of 1000MΩ.
Mechanical characteristics include a mating force of 3N, unmating force of 3N, and contact retention force of 27N. The housing is made of Nylon UL94V-0, is glow wire capable, and is available in black. It is compatible with both tin and gold plated contacts, offering 20 cycles for tin and 50 cycles for gold. The part is packaged in a bag.
According to the datasheet, this connector is suitable for applications in consumer home appliances, telecommunications/networking, automotive interior lighting, lighting fixtures, industrial equipment, and medical healthcare IT. It is RoHS compliant and carries UL file E29179 and CSA file LR19980.
5 positions.
2.50mm.
8.0A.
250V.
Free Hanging (In-Line).
3N typical.
UL E29179, CSA LR19980, RoHS compliant, and glow wire capable.
