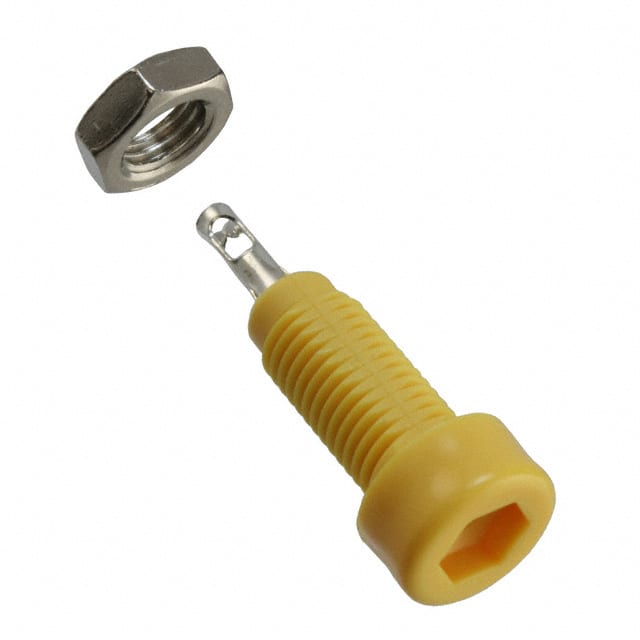

The Cinch 105-0807-001 is a female tip jack designed for panel mount applications with solder eyelet termination. It accepts standard 0.080 in (2.00 mm) diameter tip plugs. The contact is made of phosphor bronze per QQ-B-750 with a bright tin finish, housed in a yellow nylon 6/6 body per ASTM D4066. Electrical ratings include a current rating of 10 A, minimum breakdown voltage of 5700 Vrms, maximum contact resistance of 0.010 ohms, and nominal contact-to-panel capacitance of 2 pF. The body features a hex socket head for ease of mounting and a thread stripping torque of 4.0 lb·in. The panel thickness can be up to 0.437 in (11.10 mm). The mating end is insulated. This tip jack is suitable for test equipment, panel wiring, and other low-voltage applications requiring a reliable, insulated connection.
10 A
5700 Vrms minimum
Panel mount
0.010 ohms maximum
0.080 in (2.00 mm)
Nylon 6/6 per ASTM D4066
