105-0203-200 Female Tip Jack with turret termination, panel mount, black insulation. Rated for 10A current and 5700Vrms breakdown voltage.
Mfr Part #:

105-0203-200

Available from 1 distributors
Mfr Name: Cinch
Cinch
Female Tip Jack with turret termination, panel mount, black insulation. Rated for 10A current and 5700Vrms breakdown voltage.
✓ Total Stock: 50 pcs

105-0203-200 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
ADI/AAR OEM Supply ✓
Non-Authorised Inventory information
50 pcs
On Request
50 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

105-0203-200 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Body Material
Color
Contact Finish
Contact Material
Contact Resistance
Current Rating
Gender
Hardware
Industrial Grade
Insulation
Lead Style
Military Grade
Mounting Type
Panel Thickness
Plug
Plug Type
Tape & Reel
Termination
Termination Style
Type
View Similar Products (0)

105-0203-200 Description

Short technical summary and product information.

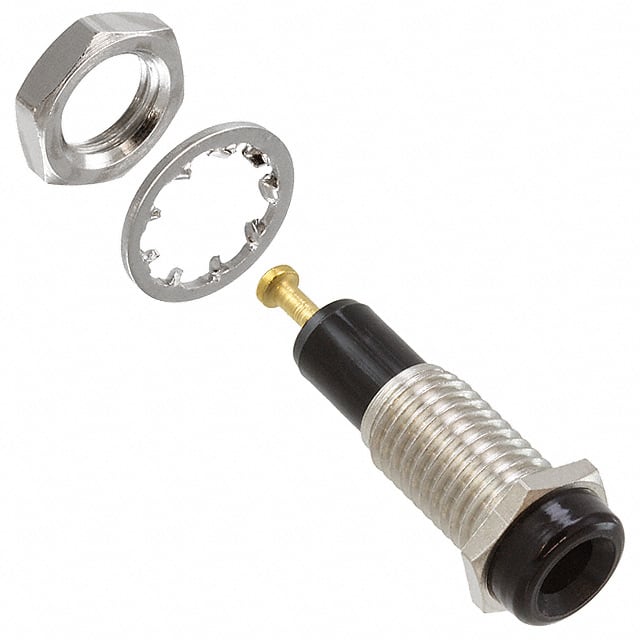

The Cinch 105-0203-200 is a female tip jack designed for panel mounting with a turret terminal. It features a black nylon 6/6 body with a nickel-plated brass jacket and gold-plated brass contact with beryllium copper spring. The insulation is mating end insulated, metal clad. Electrical ratings include 10A current, 5700Vrms minimum breakdown voltage, 0.004 ohm maximum contact resistance, and 2 pF nominal capacitance. It accepts standard tip plugs of 0.080" (2.0mm) diameter. Hardware includes nickel-plated washer and nut (unassembled). Maximum panel thickness is 5.45mm. Manufactured to meet MIL-C-39024/10 specifications. Suitable for military or industrial applications.

105-0203-200 Quick Information

Product Type: Tip Jack
Series: 105
Canonical Name: Tip Jack, Female, Panel Mount, Turret, Black
Subcategory: Jacks, Plugs

105-0203-200 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

105-0203-200 Features

  • Gold-plated brass contact with beryllium copper spring.
  • Rated for 10A current and 5700Vrms breakdown.
  • Panel mount with turret termination.
  • Insulated metal clad design.
  • Meets MIL-C-39024/10 specifications.

105-0203-200 Applications

  • Suitable for military and industrial test equipment.
  • Used in panel-mounted interconnect systems.
  • Ideal for applications requiring high voltage isolation.
  • Common in test and measurement setups.

105-0203-200 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the current rating of the 105-0203-200?

10 A.

What is the breakdown voltage?

5700 Vrms minimum.

What is the mounting type?

Panel mount.

What is the contact resistance?

0.004 ohm maximum.

What is the contact-to-panel capacitance?

2 pF nominal.

What MIL spec does this part meet?

MIL-C-39024/10.

What is the insulation type?

Mating end insulated, metal clad.
