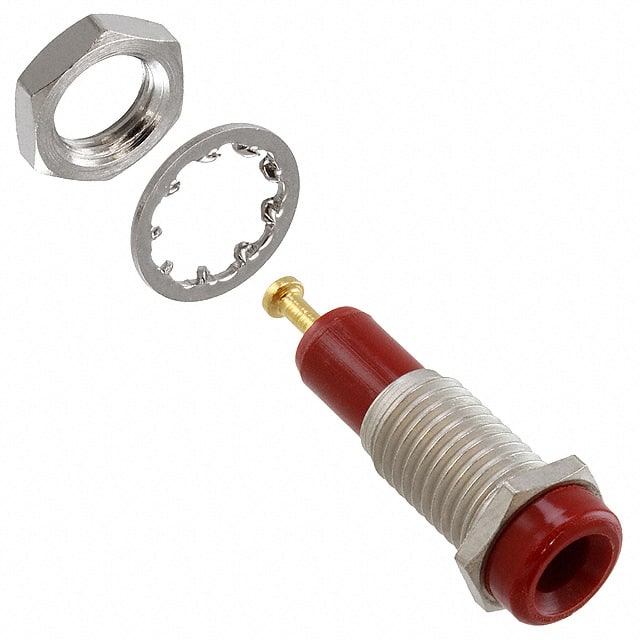

The 105-0202-200 is a red tip jack from Cinch Connectivity Solutions, designed for panel mount applications. It features a female gender with turret termination and an insulated metal clad construction. The contact is machined from brass per QQ-B-626D with a beryllium copper spring per QQ-C-533, finished in gold. The body is Nylon 6/6 per ASTM D4066, and the threaded brass jacket is nickel plated. Hardware includes a nickel plated washer and nut (unassembled).
Electrical ratings include a current rating of 10 amps, minimum breakdown voltage of 5700 Vrms, maximum contact resistance of 0.004 ohms, and nominal contact-to-panel capacitance of 2 pF. The jack accepts standard tip plugs of .080" (2.00 mm) diameter and features a closed entry that blocks probes greater than .085" (2.16 mm). It is manufactured to meet MIL-C-39024/10 specifications.
This tip jack is suitable for military or industrial applications requiring reliable, high-current connections. The panel mount design with turret termination simplifies wiring and provides a secure mechanical attachment. The red color aids in identification and circuit organization.
10 amps.
5700 Vrms minimum.
Turret termination.
0.004 ohms maximum.
MIL-C-39024/10.
Panel mount.
Red.
