Mfr Part #:

10469

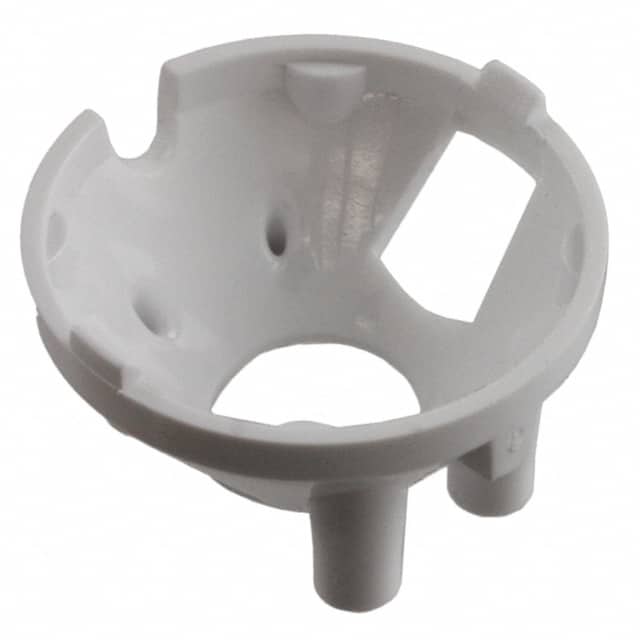

The Carclo Technical Plastics 10469 is an optic holder designed for 26.5mm optics. It is constructed from Polycarbonate and features a leg length of 16.2mm.

✓ Total Stock: 21 pcs

$ Price Range: $0.99

10469 Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Partservice ✓ Non-Authorised Inventory information	21 pcs On Request	21 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

10469 Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	Accessories
Manufacturer Name	Carclo Technical Plastics
Accessory Type	LED - Lens Holder
For Use With	Avago Moonstone™
Leg Length	16.2 mm
Material	Polycarbonate
Optic Diameter	26.5 mm

View Similar Products (0)

10469 Description

Short technical summary and product information.

This Carclo Technical Plastics 10469 is a 4-leg optic holder designed for use with 26.5mm diameter optics. Constructed from Polycarbonate, it offers durability for various LED applications.

The holder features a leg length of 16.2mm, suitable for mounting onto PCBs. The material choice of Polycarbonate ensures good thermal and mechanical properties for its intended use.

This component is part of the broader range of accessories offered by Carclo Technical Plastics for optoelectronic applications.

10469 Quick Information

Product Type: LED Lens Holder

Canonical Name: Carclo Technical Plastics 10469 LED Lens Holder

Subcategory: LED Lens Holder

10469 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

10469 Estimated Pricing

Qty	Low	High
1+	$0.99	$0.99

Estimated market price range - modelled values for guidance only, not live distributor offers.

10469 Features

Polycarbonate material for durability and insulation.
26.5 mm diameter optic for precise LED placement.
4-leg holder design for secure mounting.
Lengthened to 16.2 mm for P4 LED compatibility.
RoHS compliant material for environmental safety.

10469 Applications

Suitable for LED optical alignment applications.
Used in optoelectronic device assemblies.
Ideal for LED light focusing and directing.
Compatible with 26.5mm diameter LED modules.

10469 FAQs

3 frequently asked questions generated from this part’s specifications.

What is the optic diameter for the Carclo Technical Plastics 10469?

The optic diameter is 26.5 mm.

What material is the Carclo Technical Plastics 10469 optic holder made from?

The optic holder is made from Polycarbonate.

What is the leg length of the Carclo Technical Plastics 10469?

The leg length is 16.2 mm.
