Mfr Part #:

104257-4

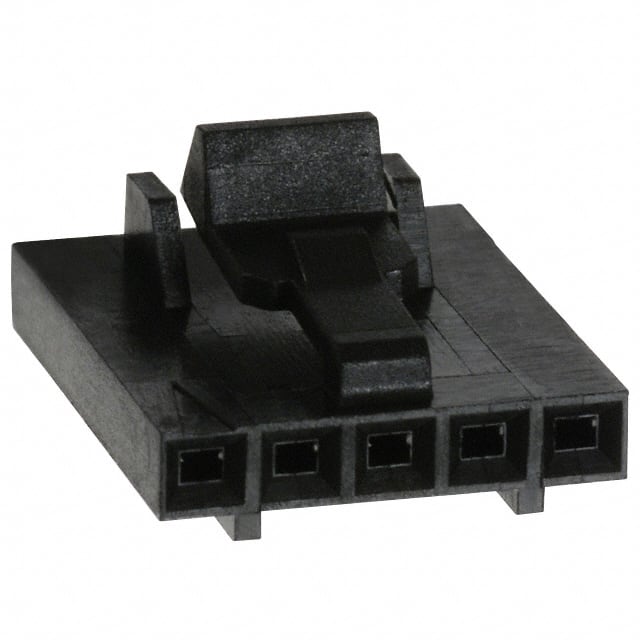

TE Connectivity 104257-4 is a 5-position, single-row rectangular connector housing with a 2.54mm pitch. It features crimp termination and a latch lock fastening system for secure in-line connections.

✓ Total Stock: 1,039 pcs

104257-4 Available from 3 distributors

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Hybrid Electronics ✓ Non-Authorised Inventory information	430 pcs On Request	430 pcs	On Request	1	On Request	On Request	1551	On Request	On Request
AA2DE ✓ Non-Authorised Inventory information	400 pcs On Request	400 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
Braun Electronic Components ✓ Non-Authorised Inventory information	209 pcs On Request	209 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

104257-4 Description

Short technical summary and product information.

The TE Connectivity 104257-4 is a 5-position rectangular connector housing designed for reliable wire-to-wire or wire-to-board connections. This receptacle housing accepts female socket contacts and is terminated via crimp connection, ensuring a secure and durable electrical joint.

With a 2.54mm (0.100") pitch and a single-row configuration, this housing is suitable for compact designs where space is at a premium. The latch lock fastening type provides positive retention, preventing accidental disconnection in vibration-prone environments.

Mechanically, the housing is designed for free hanging (in-line) mounting, offering flexibility in harness and cable assembly applications. The operating temperature range spans -65°C to 105°C, making it usable across a wide range of environmental conditions.

This product is compliant with RoHS, REACH, and has a Moisture Sensitivity Level of 1 (unlimited floor life), though these compliance ratings are unverified. It is commonly used in industrial, automotive, and consumer electronics where a compact, reliable connector interface is required.

104257-4 Quick Information

Product Type: Rectangular Connector Housing

Canonical Name: TE Connectivity 104257-4 Rectangular Connector Housing, 5 Position, 2.54mm Pitch, Single Row, Female Socket, Crimp Termination, Free Hanging

Subcategory: Wire-to-Board / Wire-to-Wire

104257-4 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

104257-4 Features

5-position single row housing with 2.54mm pitch.
Crimp termination for secure wire connections.
Latch lock fastening prevents accidental disconnection.
Free hanging in-line mounting design.
Operating temperature range -65°C to 105°C.

104257-4 Applications

Wire harness assemblies for industrial equipment.
In-line cable connections for automotive applications.
Compact internal wiring in consumer electronics.
Modular connector systems requiring latch lock retention.

104257-4 FAQs

4 frequently asked questions generated from this part’s specifications.

How many positions does the TE Connectivity 104257-4 have?

The 104257-4 is a 5-position connector housing.

What is the pitch of the 104257-4 connector housing?

The pitch is 2.54mm (0.100").

What type of mounting does the 104257-4 use?

It is designed for free hanging (in-line) mounting.

What is the operating temperature range of the 104257-4?

The operating temperature range is -65°C to 105°C.

Category	Rectangular Connector Housings
Manufacturer Name	TE Connectivity
Color	Black
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock
Lead Spacing	2.54 mm
Mounting Type	Free Hanging (In-Line)
Number of Positions	5
Number of Rows	1
Operating Temperature	-65°C ~ 105°C
Pitch	2.54mm (0.100")
SVHC Present	Not Present
Tape & Reel	No
