| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
25 pcs
|
25 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| ATEX | |
| Automotive Grade | |
| Blade Size | |
| Clamping Range | |
| Clamping Screw | |
| Color | |
| Connection Direction | |
| Current | |
| Current (CSA) | |
| Flammability Rating | |
| IECEx | |
| Industrial Grade | |
| Insulating Material | |
| Number of Levels | |
| Number of Positions | |
| Operating Temperature Range | |
| Rated Cross Section | |
| Rated Current | |
| Rated Voltage | |
| Standard Package Quantity | |
| Stripping Length | |
| Terminal | |
| Termination Style | |
| Tightening Torque | |
| Type | |
| Type of Connection | |
| Type of Mounting | |
| Voltage | |
| Voltage (CSA) | |
| Wire Gauge or Range | |
| terminal-spacing |

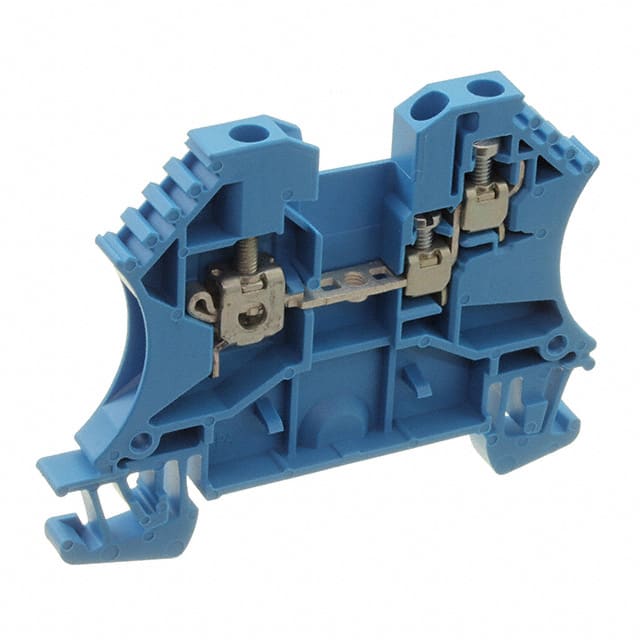

The Weidmüller WDU 2.5/1.5/ZR BL (Order No. 1024780000) is a feed-through terminal block from the W-Series, designed for screw connection of conductors. It is rated for a cross-section of 2.5 mm², with a rated current of 17.5 A and a rated voltage of 400 V (when using cross-connection ZQV). The clamping range is 0.13 to 2.5 mm², accommodating solid wires from 0.5 mm² to 2.5 mm² and flexible wires with ferrule up to 1.5 mm². Stripping length is 7 mm, and tightening torque is 0.4 to 0.6 Nm.
The terminal block features a blue insulating body made of Wemid, a material with UL94 V-0 flammability rating. It has 3 positions and 1 level, with side connection direction and an M 2.5 clamping screw (blade size 0.6 x 3.5 mm). Mounting is snap-on onto TS 35 DIN rail. The operating temperature range is -50 to +120 °C.
Compliance includes ATEX (Ex II 2 G D) and IECEx (Ex e II) certifications for hazardous area use. RoHS, REACH, and MSL statuses are unverified. The standard package quantity is 100 pieces. Cross-references include DigiKey part number 281-5435-ND.
3 positions.
17.5 A.
400 V when using cross-connection ZQV; ATEX rated 550 V, IECEx 550 V, CSA 300 V.
Snap-on mounting on TS 35 DIN rail.
Solid wire 0.5-2.5 mm², flexible wire 0.5-1.5 mm², flexible with ferrule 0.5-1.5 mm². Clamping range 0.13-2.5 mm².
5.1 mm.
Clamping screw M 2.5, tightening torque 0.4-0.6 Nm.
