| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6 pcs
|
6 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Clamping Range | |
| Clamping Screw | |
| Color | |
| Connection Direction | |
| Current | |
| Current (ATEX/IECEx) | |
| Current (CSA) | |
| Flammability Rating | |
| Flexible Wire Range | |
| Gauge to IEC 60947-1 | |
| Industrial Grade | |
| Insulating Material | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Operating Temperature | |
| Rail Type | |
| Rated Cross Section | |
| Solid Wire Range | |
| Standard Package Quantity | |
| Stripping Length | |
| Tape & Reel | |
| Terminal | |
| Termination Style | |
| Tightening Torque | |
| Type | |
| Voltage | |
| Voltage (ATEX/IECEx) | |
| Voltage (CSA) | |
| Width | |
| Wire Gauge Range | |
| Wire Gauge or Range |

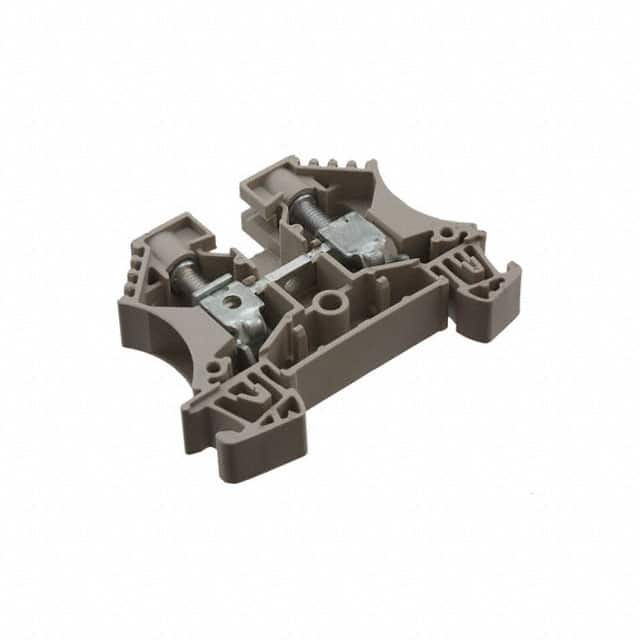

The Weidmüller WDU 10 (order no. 1020300000) is a modular feed-through terminal block from the W-Series, designed for reliable and space-saving wiring in industrial control panels. It features a rated cross-section of 10 mm² and accepts solid and flexible conductors from 1.5 to 6 mm², with a clamping range of 1.31 to 16 mm². The terminal uses a screw connection with an M4 clamping screw and a recommended tightening torque of 1.2 to 2.4 Nm.
Electrical ratings include 600 V / 65 A per CSA and 550 V / 50 A for ATEX and IECEx hazardous area applications. The insulating material is Wemid, colored dark beige, with a flammability rating of UL 94 V-0. Operating temperature ranges from -50 to +120 °C. The terminal snaps onto TS 35 DIN rail and has a side connection direction. Stripping length is 12 mm.
This terminal is suitable for use in Ex e II certified environments, with ATEX and IECEx certification references available. The compact design relative to its rated cross-section makes it a popular choice for control cabinets and junction boxes.
The rated cross-section is 10 mm².
CSA: 600 V / 65 A. ATEX/IECEx: 550 V / 50 A.
It snaps onto TS 35 DIN rail.
-50 to +120 °C.
