| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Mounting Type | |
| Number of Poles | |
| Voltage Rating |

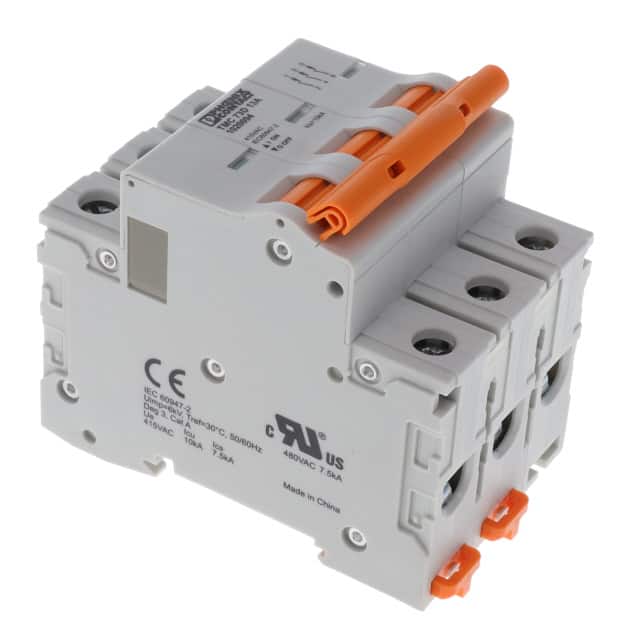

The Phoenix Contact 1020094 is a thermal magnetic circuit breaker designed for overcurrent protection in various applications. This 3-pole breaker features a 13A current rating and a voltage rating of 277V AC.
Designed for reliable switching behavior, it utilizes a trip-free, snap-action mechanism. The breaker complies with UL 1077, UL 489, and EN 60947-2 standards. It is suitable for DIN rail mounting, making installation in switchgear and panel boards straightforward.
Key features include toggle actuation for switching and visual status indication for easy circuit monitoring. The TMC 7 and TMC 8 series, to which this breaker belongs, offers a range of trip curves (B, C, D) and current ratings from 1-63A, supporting both AC and DC systems.
The current rating is 13A.
The voltage rating is 277V.
It has 3 poles.
It is a Thermal Magnetic breaker.
It uses DIN Rail mounting.
The available trip curves are B, C, and D.
The SCCR for the TMC 7 series is 7.5 kA.
