| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Mounting Type | |
| Number of Poles | |
| Voltage Rating |

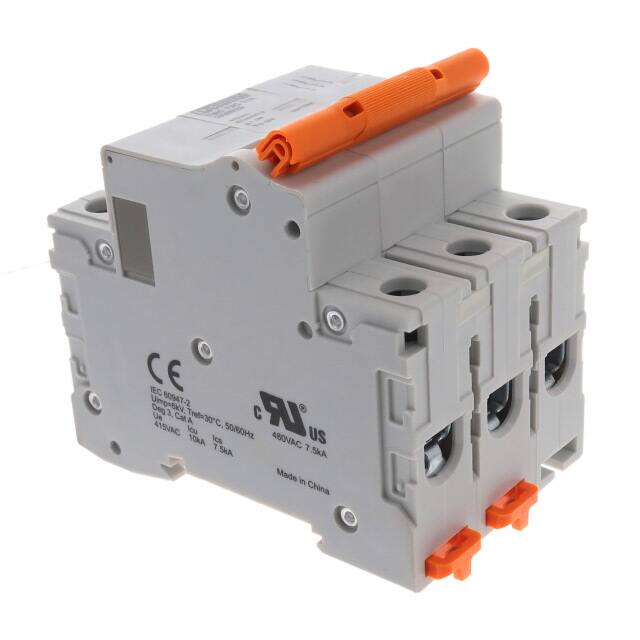

The Phoenix Contact 1020025 is a 3-pole thermal magnetic circuit breaker with a 13A current rating and a 277V voltage rating. Designed for DIN rail mounting, this breaker is part of the TMC 7 and TMC 8 series, offering reliable overcurrent protection.
Key features include a lever actuator and a trip-free snap-action mechanism for safe and dependable switching. The breaker supports B, C, and D trip curves, making it suitable for various load types. It is rated for systems up to 277/480 V AC and 60/125 V DC, providing dual-rated functionality.
This circuit breaker is ideal for use in switchgear, panel boards, and electrical equipment where robust overcurrent protection is essential. Its construction ensures secure screw terminations and visual status indication for easy circuit monitoring.
The current rating is 13A.
The voltage rating is 277V.
It has 3 poles.
It is a Thermal Magnetic circuit breaker.
It is designed for DIN Rail mounting.
The available trip curves are B, C, and D.
