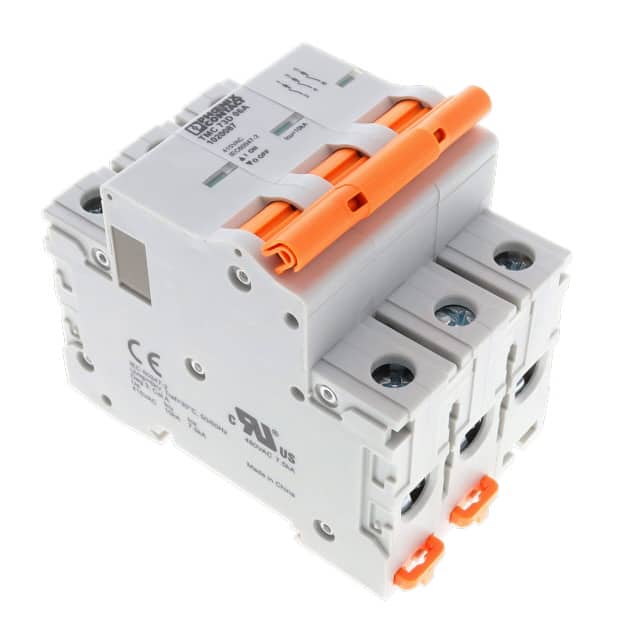

The Phoenix Contact 1020087 is a 3-pole thermal magnetic circuit breaker designed for overcurrent protection. It has a current rating of 6A and a voltage rating of 277V AC.
This circuit breaker is suitable for DIN rail mounting, making it easy to integrate into various electrical panels and switchgear. It features a thermal-magnetic tripping mechanism and a lever actuator for switching operations. The breaker is designed for reliable switching behavior in demanding applications.
Key specifications include a 6A current rating, 277V AC voltage rating, and 3 poles. It supports B, C, and D trip curves, offering flexibility for different load types. The breaker also has a short circuit current rating (SCCR) of 7.5 kA for the TMC 7 series and an interrupting capacity (AIC) of 10 kA for the TMC 8 series.
This component is ideal for protecting circuits and loads from overcurrent conditions in industrial and commercial electrical equipment.
6A.
277V AC and 125V DC.
3 poles.
Thermal magnetic.
B, C, and D.
DIN Rail.
10 kA.
