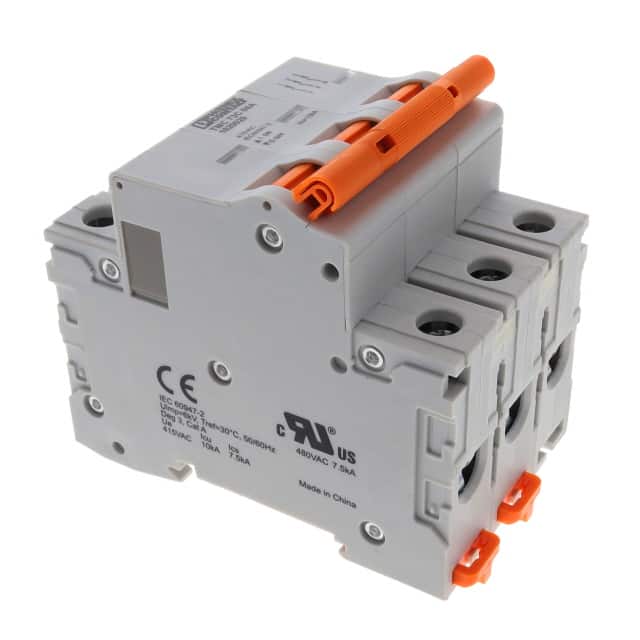

The Phoenix Contact 1020020 is a 3-pole thermal magnetic circuit breaker rated for 6A continuous current and 277V AC operation. It is designed for overcurrent and short-circuit protection in industrial and commercial applications.
The circuit breaker supports system voltages up to 480V AC and 125V DC, and offers selectable B, C, and D trip curves for different load types. With an SCCR of 7.5 kA and AIC of 10 kA, it provides robust fault current interruption.
Mounting is via a standard DIN Rail, and the lever actuator allows easy manual reset. The dual AC/DC rating makes it suitable for both AC and DC circuits. No illumination is included.
6 amperes.
3 poles.
Rated voltage: 277V AC. System voltage: up to 480V AC and 125V DC.
B, C, and D curves.
DIN Rail.
SCCR: 7.5 kA, AIC: 10 kA.
Lever.
