| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Mounting Type | |
| Number of Poles | |
| Voltage Rating |

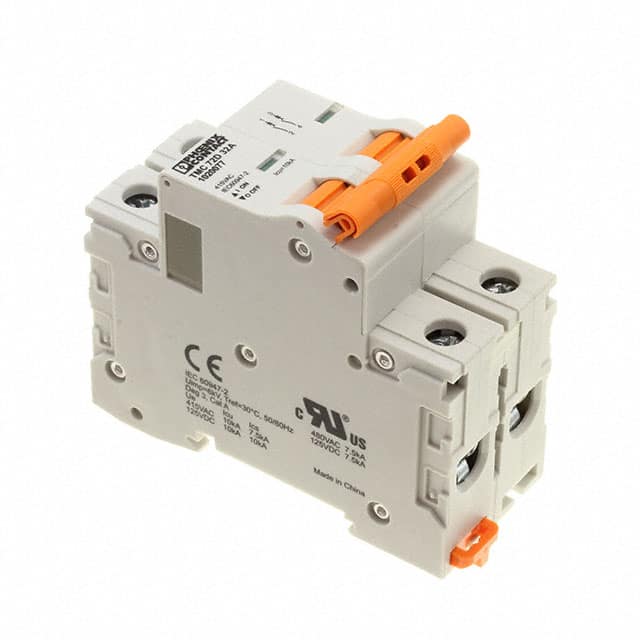

The Phoenix Contact 1020077 is a thermal magnetic circuit breaker designed for branch overload and short-circuit protection. It is a 2-pole device with a current rating of 32A and a voltage rating of 277V AC and 125V DC.
This circuit breaker is suitable for a variety of applications, including the protection of cables, motors, generators, transformers, and electronic equipment. It features a lever actuator for easy operation and is designed for mounting on a 35 mm NS35 rail.
The TMC 7 series, to which this part belongs, is UL 1077 Recognized, providing supplemental overload and short-circuit protection. The TMC 8 series, however, is UL 489 Listed for branch circuit protection. Both product lines carry the CE mark.
Key features include visual status indication and a trip-free, snap-action mechanism that cannot be manually overridden during an overload situation. Accessories such as auxiliary contacts, alarm contacts, shunt trips, and busbars are available.
The current rating is 32A.
The AC voltage rating is 277V.
The DC voltage rating is 125V.
It has 2 poles.
It is a Thermal Magnetic breaker.
It is mounted on a DIN Rail.
It is RoHS3 Compliant.
