| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Mounting Type | |
| Number of Poles | |
| Voltage Rating |

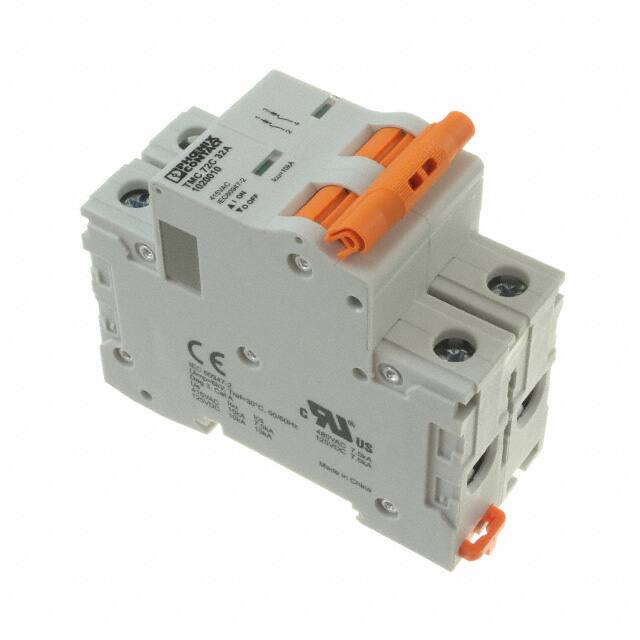

The Phoenix Contact 1020010 is a thermal magnetic circuit breaker designed for branch overload and short-circuit protection. It is a 2-pole device with a current rating of 32A and a voltage rating of 277V AC.
This circuit breaker is suitable for mounting on a 35 mm NS35 rail, making it convenient for industrial and control panel applications. The TMC 7 series, to which this part belongs, is UL 1077 Recognized, providing supplemental protection.
Typical applications for this type of circuit breaker include the protection of cables, motors, generators, transformers, thyristors, silicon rectifiers, computers, peripheral equipment, industrial process control systems, telecommunications equipment, and power supplies.
32A.
277V AC and 125V DC.
2 poles.
Lever actuator.
DIN Rail.
Thermal Magnetic.
Box.
