| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Mounting Type | |
| Number of Poles | |
| Voltage Rating |

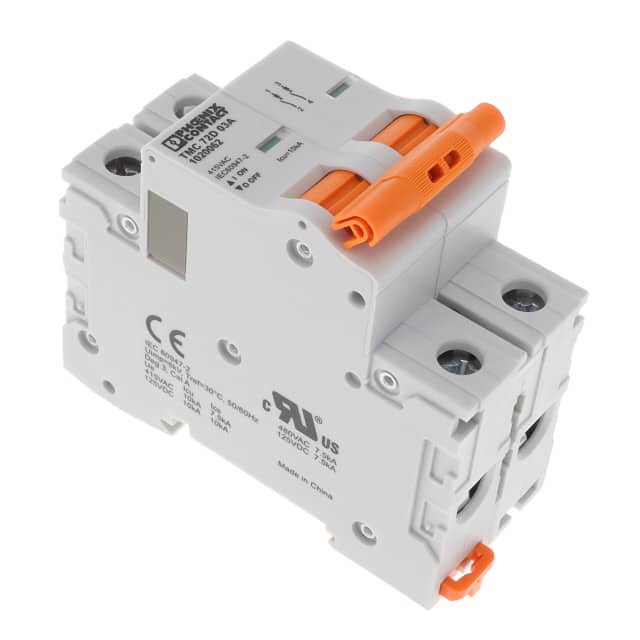

The Phoenix Contact 1020062 is a miniature circuit breaker from the TMC 7/8 series, designed for branch overload and short-circuit protection. This 2-pole thermal magnetic breaker has a current rating of 3A and a voltage rating of 277V.
It is designed for DIN rail mounting on a 35mm NS35 rail and has a width of 17.6mm per pole. The breaker features a trip-free, snap-action mechanism that cannot be manually overridden during an overload situation, providing reliable protection.
Typical applications for this series include protection of cables, motors, generators, transformers, thyristors, silicon rectifiers, computers, industrial process control systems, telecommunications equipment, and power supplies. The TMC 7... series is UL 1077 Recognized, while the TMC 8... series is UL 489 Listed. Both product lines carry the CE mark.
The current rating is 3A.
The voltage rating is 277V.
It has 2 poles.
It uses DIN rail mounting.
It is a thermal magnetic breaker.
The available trip curve options are B, C, and D.
