| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Mounting Type | |
| Number of Poles | |
| Voltage Rating |

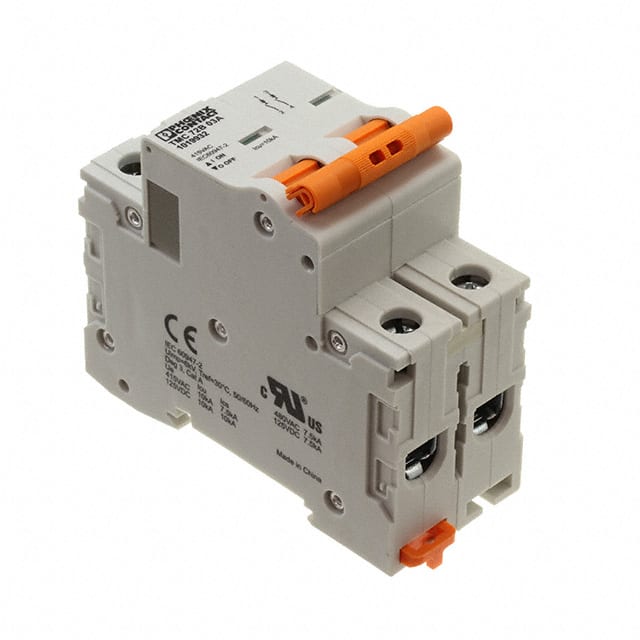

The Phoenix Contact 1019932 is a miniature circuit breaker (MCB) designed for branch overload and short-circuit protection. It is a 2-pole, Thermal Magnetic type with a current rating of 3A and a voltage rating of 277V.
This circuit breaker offers an interrupt capacity of 10 kAIC and is UL 489 Listed for the U.S. and Canada, providing reliable protection for various applications. It is designed for easy mounting on a 35 mm NS35 rail.
Key features include a trip-free, snap-action mechanism that cannot be manually overridden during an overload situation, and visual status indication. The TMC 7/8... series circuit breakers are suitable for protecting cables, motors, generators, transformers, and electronic equipment.
This product line also carries the CE mark, indicating compliance with European safety standards. Accessories such as auxiliary contacts, alarm contacts, shunt trips, and busbars are available.
The current rating is 3A.
The voltage rating is 277V.
It has 2 poles.
It is a Thermal Magnetic breaker.
It is mounted on a DIN Rail.
The interrupt capacity is 10 kAIC.
The TMC 8... is UL 489 Listed and the TMC 7... is UL 1077 Recognized for the U.S. and Canada.
