| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
880 pcs
|
880 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Conductor Cross-Section (Clamping Range) | |
| Connection Direction | |
| Current | |
| Current (ATEX) | |
| Current (CSA) | |
| Current (Rated) | |
| Flammability Rating | |
| Flexible Conductor Range | |
| Flexible with Ferrule Range | |
| Industrial Grade | |
| Insulation Material | |
| Lead Style | |
| Mounting Type | |
| Number of Connections | |
| Number of Levels | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Screw Size | |
| Solid Conductor Range | |
| Standard Package Quantity | |
| Stripping Length | |
| Tape & Reel | |
| Terminal | |
| Termination Style | |
| Torque Rating | |
| Type | |
| Voltage | |
| Voltage (ATEX) | |
| Voltage (CSA) | |
| Voltage - IECEx | |
| Voltage - Rated | |
| Wire Gauge - AWG (CSA) | |
| Wire Gauge Range | |
| Wire Gauge or Range |

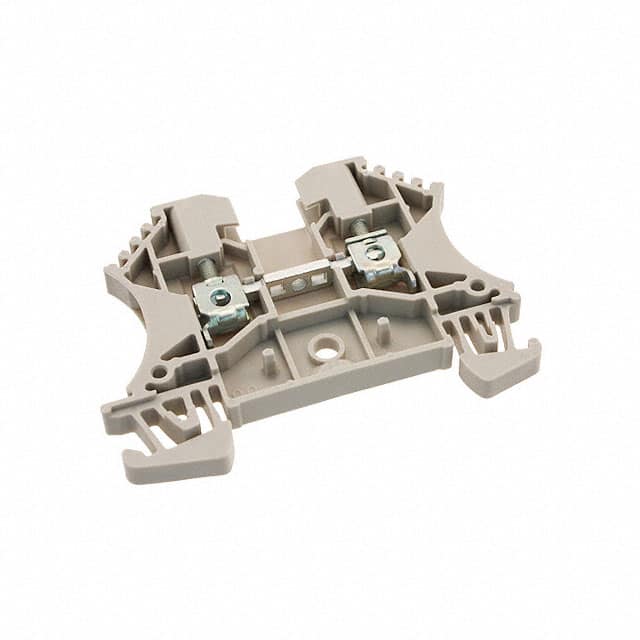

The Weidmüller WDU 2.5 (part number 1020000000) is a feed through terminal block from the W-series, designed for reliable and compact wiring in industrial control panels. It features a screw termination style, accepting solid and flexible conductors from 0.5 to 4 mm² (26-12 AWG). The terminal block is rated for 25 A (CSA 20 A, ATEX 21 A) and 600 V (CSA 600 V, IECEx/ATEX 550 V), making it suitable for a wide range of power distribution and signal wiring applications.
The component is molded from beige Wemid insulation material, offering a flammability rating of V-0 per UL94 and an operating temperature range of -50°C to +120°C. The 2-position, single-level design has a 5.1 mm pitch and side connection direction. Mounting is achieved via a snap-on mechanism onto TS35 DIN rail, simplifying installation and removal. The package quantity is 100 pieces.
The rated current is 25 A. The datasheet also specifies CSA rating of 20 A and ATEX rating of 21 A.
The CSA rated voltage is 600 V; IECEx and ATEX ratings are 550 V.
It accepts solid conductors 0.5–4 mm², flexible conductors 0.5–1.5 mm², and flexible with ferrule 0.5–1.5 mm². AWG range is 26-12.
Snap-on mounting for TS35 DIN rail.
The pitch is 5.1 mm.
The insulation material is Wemid and the flammability rating is V-0 per UL94.
-50°C to +120°C.
