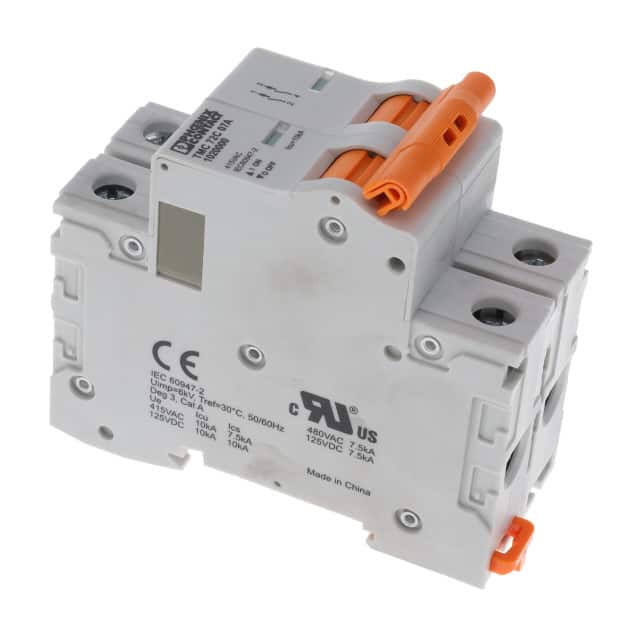

The Phoenix Contact 1020000 is a thermal magnetic circuit breaker designed for branch overload and short-circuit protection. It has a current rating of 7A and a voltage rating of 277V, with a 2-pole configuration.
This circuit breaker is suitable for mounting on a 35 mm NS35 rail, making it convenient for industrial and control panel applications. The actuator type is a lever, and it features visual status indication. The trip-free, snap-action mechanism prevents manual override during overload situations.
Typical applications for this type of circuit breaker include protection of cables, motors, generators, transformers, thyristors, silicon rectifiers, computers, peripheral equipment, industrial process control systems, telecommunications equipment, and power supplies.
The current rating is 7A.
The voltage rating is 277V.
It has a 2-pole configuration.
It is a thermal magnetic breaker.
It is designed for DIN rail mounting.
The interrupt capacity is 10 kAIC at up to 277/480 V AC and 125 V DC.
The short-circuit current ratings range from 5 kAIC to 7.5 kAIC, depending upon the supply voltage.
