| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Mounting Type | |
| Number of Poles | |
| Voltage Rating | |
| Width |

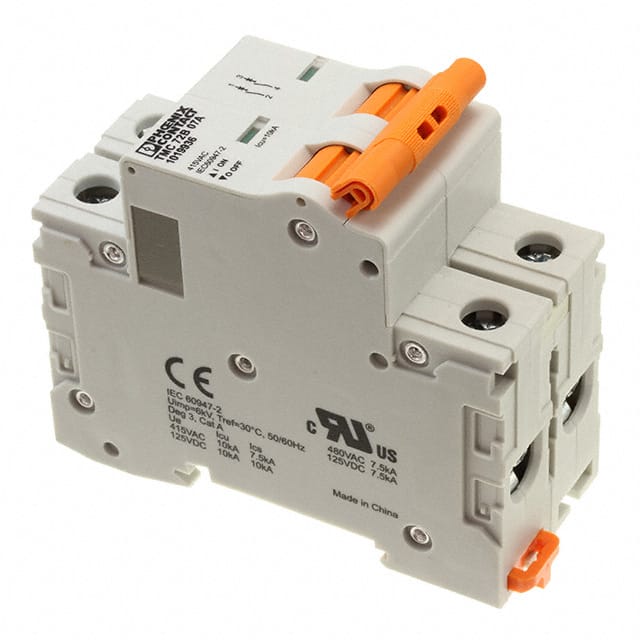

The Phoenix Contact 1019936 is a thermal magnetic circuit breaker designed for branch overload and short-circuit protection. It is available in 1-, 2-, and 3-pole configurations with B, C, and D trip curve options. This specific model is rated for 7A and 277V.
It mounts on a 35 mm NS35 rail and has a width of 17.6 mm per pole. The TMC 7... series is UL 1077 Recognized, providing supplemental protection, while the TMC 8... series is UL 489 Listed for branch circuit protection. Both series carry the CE mark.
Typical applications include protection of cables, motors, generators, transformers, thyristors, silicon rectifiers, computers, industrial process control systems, telecommunications equipment, and power supplies. Accessories such as auxiliary contacts, alarm contacts, shunt trips, and busbars are available.
The current rating is 7A.
It has 2 poles.
It uses DIN rail mounting.
The voltage rating is 277V.
It is a Thermal Magnetic breaker type.
The TMC 7... series is UL 1077 Recognized, and the TMC 8... series is UL 489 Listed.
Trip curve options include B, C, and D.
