| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Mounting Type | |
| Number of Poles | |
| Voltage Rating |

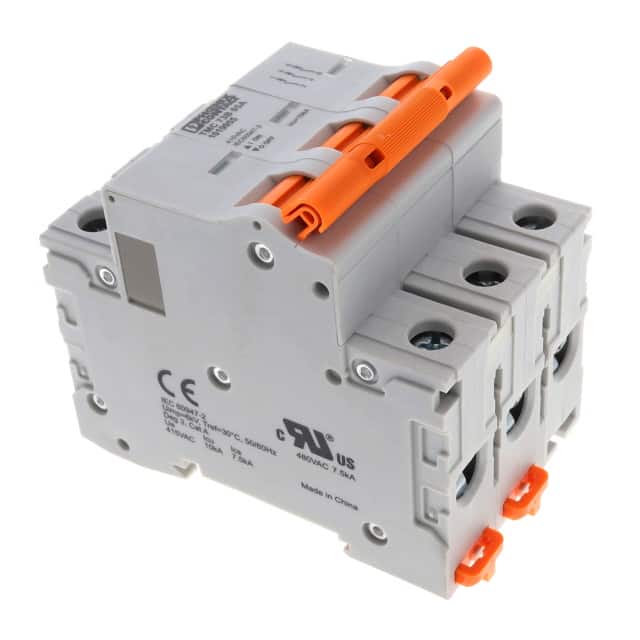

The Phoenix Contact 1019955 is a thermal magnetic miniature circuit breaker designed for branch overload and short-circuit protection. This 3-pole unit has a current rating of 5A and a voltage rating of 277V.
It is suitable for a variety of applications including protection of cables, motors, generators, transformers, and electronic equipment. The breaker features a trip-free, snap-action mechanism that cannot be manually overridden during an overload situation. It also provides visual status indication.
Designed for easy installation, the 1019955 mounts on a 35 mm NS35 rail and is 17.6 mm wide per pole. Accessories such as auxiliary contacts, alarm contacts, shunt trips, and busbars are available.
This circuit breaker line carries the CE mark. The TMC 8... series, which includes this part, is UL 489 Listed for the U.S. and Canada, offering an interrupt capacity of 10 kAIC at up to 277/480 V AC and 125 V DC.
The current rating is 5A.
The voltage rating is 277V.
It has 3 poles.
It is a Thermal Magnetic breaker.
It is mounted on a DIN Rail.
The interrupt capacity is 10 kAIC at up to 277/480 V AC and 125 V DC.
The available trip curve options are B, C, and D.
